Introduction of the Spinning Technological Process

Today we introduce the spinning technological process.


(一)Cleaning Process

1. Cotton Opening: Loosen the compressed raw cotton into small cotton lumps or cotton bundles, which is convenient for the smooth removal of impurities.

2. Cleaning Cotton: remove most of the magazines, defects and short fibers not suitable for spinning in the raw cotton.

3. Blending Cotton: Fully and evenly mix raw cotton with different components, which is convenient for the stability of cotton yarn quality.

4. Rolling: make cotton rolls with a certain weight, length, uniform thickness and good shape.

01



(二)Carding Process

1. Carding: Decompose the cotton block into single fibers to improve the straight and parallel state of the fibers.

2. Impurity removal: remove small impurities and short lint in the lap.

3. Mixing: Make the fibers further fully and uniformly mixed.

4. Sliver: make sliver that meets the requirements.

001



 (三)Combing Process

1. Impurity removal: remove neps, impurities and fiber defects in fibers.

2. Carding: further separating fibers, eliminating short fibers with a certain length, and improving the length uniformity and straightness of fibers.

3. Drafting: thin the sliver to a certain thickness and improve the parallel straightness of the fibers.

4. Sliver: make sliver that meets the requirements.

1010

At this step, we recommend you our AT203 Laboratory Combing Machine



(四)Drawing Process

1. Merging: Generally, 6-8 slivers are used for merging to improve the unevenness of the long segments of the sliver.

2. Drafting: stretch the sliver to the specified weight, and further improve the straightness and parallelism of the fibers.

3. Mixing: By combining and drawing, the fibers are further uniformly mixed.

4. Sliver: make a well-formed sliver, and place the regular plate in the sliver bucket for subsequent operations.

058

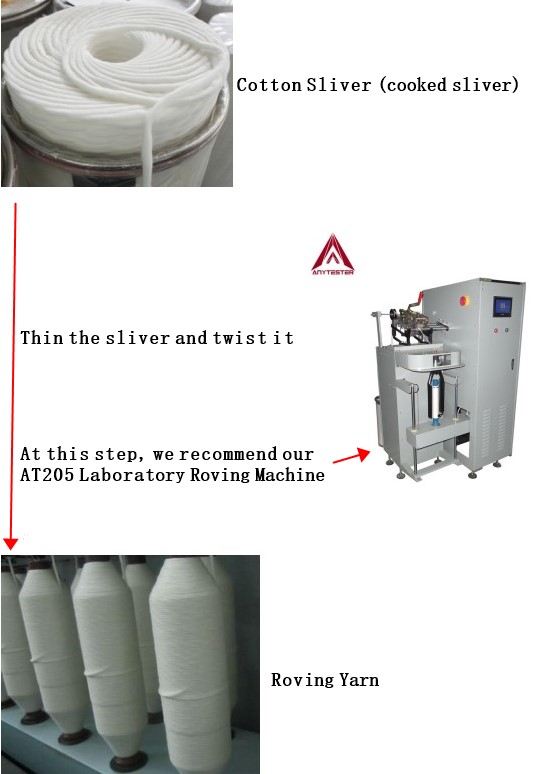

(五)Roving Process

1. Drafting: evenly stretch and thin the cooked sliver, and make the fibers further straight and parallel.

2. Twisting: the drafted sliver is properly twist to make the sliver have a certain strength, so as to facilitate the winding of the coarse sand and the unwinding of the spun yarn.

560



(六)Ring Process

1. Drafting: draw the roving to the required fineness, so that the fibers are straight and parallel.

2. Twisting: twist the whiskers to form a spun yarn with a certain twist and a certain strength.

3. Winding: winding the twisted spun yarn on the bobbin.

4. Forming: make the yarns as the bobbins with the certain size and shape, which are convenient for processing after handling.

9800

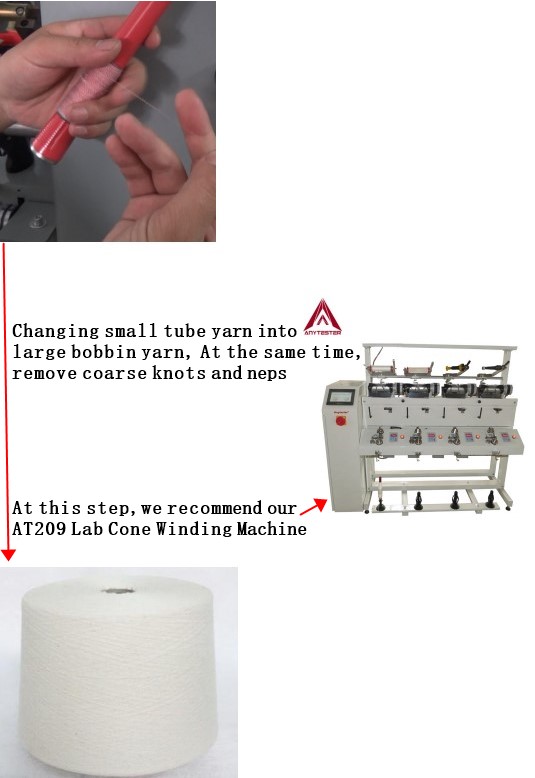

(7) Winding Process

1. Winding and forming: winding the tube yarn into a bobbin with a large capacity, a good shape and a certain density.

2. Impurity removal: remove some defects and impurities on the yarn to improve the quality of the yarn.

642

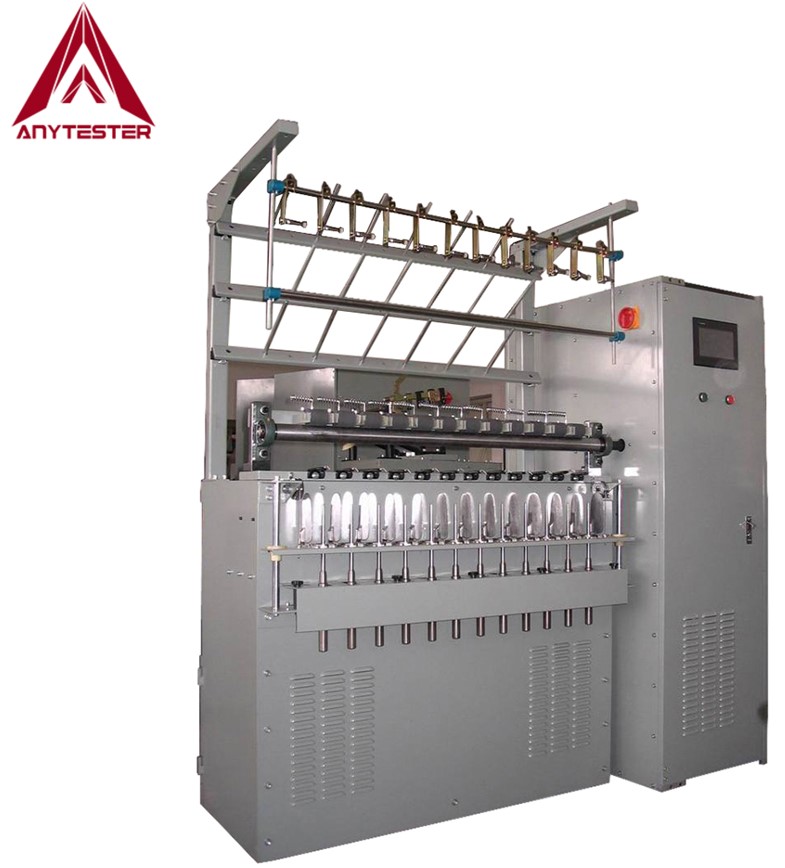

 (八) Twisting Process

1. Twisting: Two or more yarns are combined and twisted to make strands with high strength and good structure.

2. Winding: winding the twisted strand on the bobbin.

3. Forming: make a pipeline of a certain size and shape, which is convenient for handling and post-processing.

6482

At this step, we recommend our AT208 Laboratory Twisting Machine
