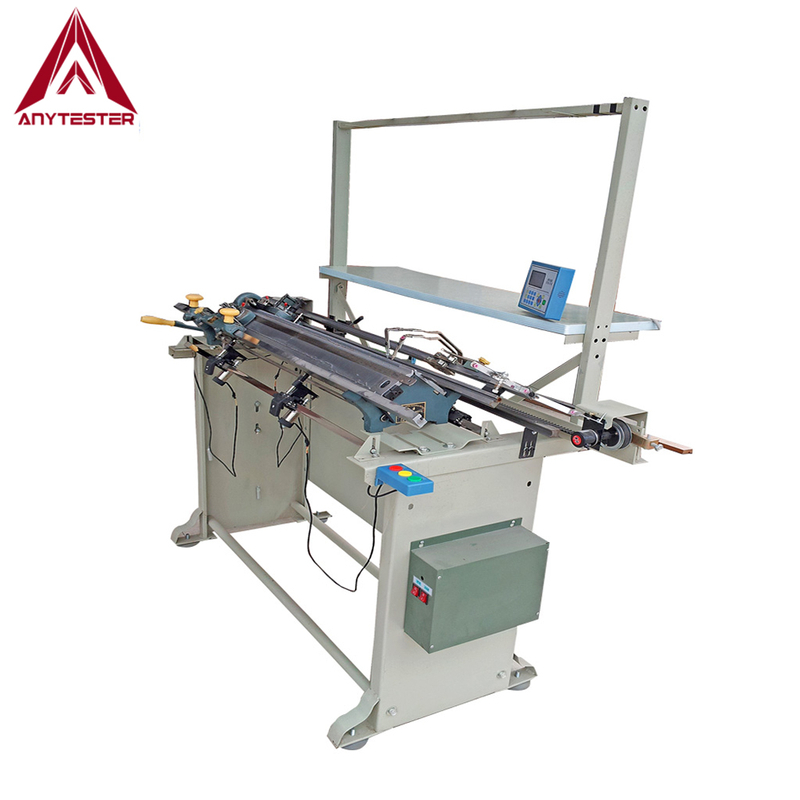

Z652S Semi-automatic Flat Knitting Machine is used knit flat knitted fabric with two driving methods: manual or motor-driven. A programmable controller allows the operator to make a simple program. It is suitable for kinds of yarns, such as cotton, wool and synthetic fibers; and it can knit various fabrics with different patterns, such as flat, rib, turn flower, twist rope, makerel scale pattern, double side, single side, third-class knops, etc.
Z652S
Anytester
Availability: | |
---|---|
Product Description
Z652S Semi-automatic Flat Knitting Machine is used knit flat knitted fabric with two driving methods: manual or motor-driven. A programmable controller allows the operator to make a simple program. It is suitable for kinds of yarns, such as cotton, wool and synthetic fibers; and it can knit various fabrics with different patterns, such as flat, rib, turn flower, twist rope, makerel scale pattern, double side, single side, third-class knops, etc.
Features
★ Two driving methods: manual and motor-driven;
★ A programmable controller;
★ Auto stop when yarn breaks (optional);
★ Automatic needle-widening;
★ Two yarn feeders, selectable;
Technical Specification
Model | Z652S |
Knitting width | 36″, 40″, 42″ |
Needle gauge | 2G, 3G, 5G, 7G, 9G, 10G, 12G, 14G, 16G |
Needle type | Latch Needle |
Knitting system | 1 |
Number of feeders | 2 |
Power supply | AC220V 50Hz, 100W |
