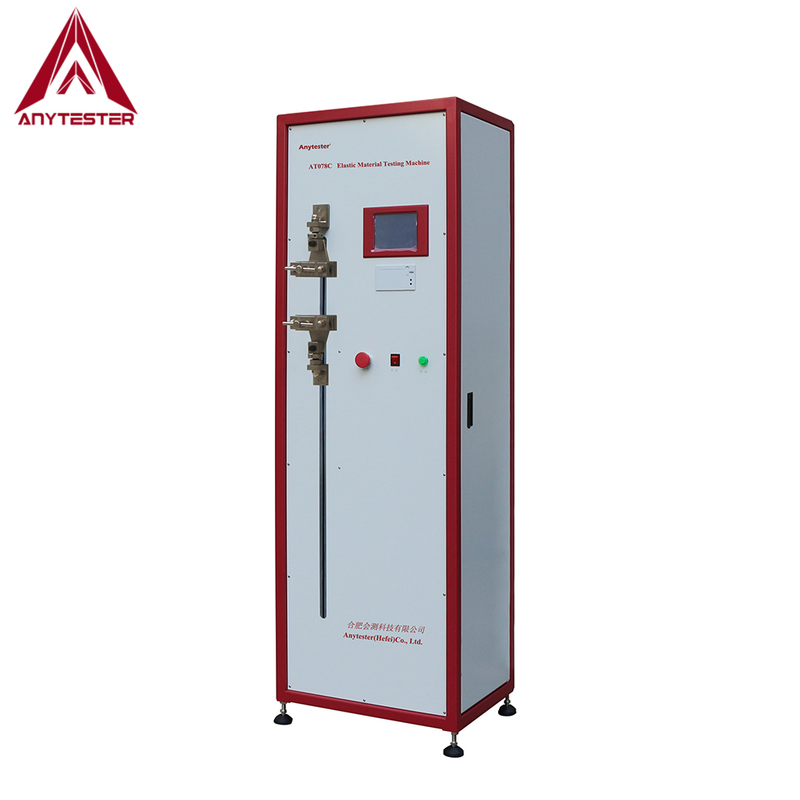

AT078E Elastic Material Testing Machine

AT078E Elastic Material Testing Machine is applicable for the determination of force at specific elongation, elongation at specific force, fabric elasticity and recover and plastic deformation of elastic materials, such as, spandex, spandex cored line, elastic cord, elastic ribbon, hosiery and knitted underwears. It adopts 32-bit single-chip microcomputer control with full Chinese menu display and operation. The test result includes data report, curve, graphic and form, storable and printable.
  • AT078E

  • Anytester

Availability:

Product Description

AT078E Elastic Material Testing Machine is applicable for the determination of force at specific elongation, elongation at specific force, fabric elasticity and recover and plastic deformation of elastic materials, such as, spandex, spandex cored line, elastic cord, elastic ribbon, hosiery and knitted underwears. It adopts 32-bit single-chip microcomputer control with full Chinese menu display and operation. The test result includes data report, curve, graphic and form, storable and printable.


Standards

GB/T 3916

FZ/T 70006, FZ/T 50006

FZ/T 5007, FZ/T 73001


Features

1. Touch screen and large LCD display of all parameters and data

2. Be able to delete data of any test and test result can be exported to Excel document, convenient to connect with the manage software of the enterprise;

3. Analysis functions: breaking point, rupture point, stress point, yield point, initial modulus, elastic deformation and plastic deformation;

4. Safety and protection measures: limits, over-load protection, negative force protection, over-current and over-voltage protection;

5. Force calibration with digital code;

6. Unique double control technologies: controlling by main machine or PC, convenient to test and with colorful test results (data report, curve, graphic and report form);

7. Standard modulus design, convenient to maintain and update;

8. With build-in mini printer, easy to output test report.


Technical Specification

Model

AT078E

Force measuring range

5000cN

Force resolution

0.1cN

Force accuracy

±1% with 2%~100% of load cell

Load resolution

1/60000

Load accuracy

±1%F.S

Drawing speed

50~1000mm/min, randomly settable

Return speed

50~1000mm/min, randomly settable

Extension resolution

0.01mm

Max. extension

800mm (not including clamp)

Specific extension range

1~800mm

Specific force range

0~5000cN

Time range

1~9999s

Number of drawing

1~99

Sampling length

0~900mm

Digitally-settable gauge length and auto positioning

Pretension

0~5000cN

Number of storable data

2000, randomly reviewable

Power supply

AC220V 50Hz, 200W

Dimensions

580×400×1660mm(L×W×H)

Weight

60kg
