HY0605
Anytester
Availability: | |
---|---|
Product Description

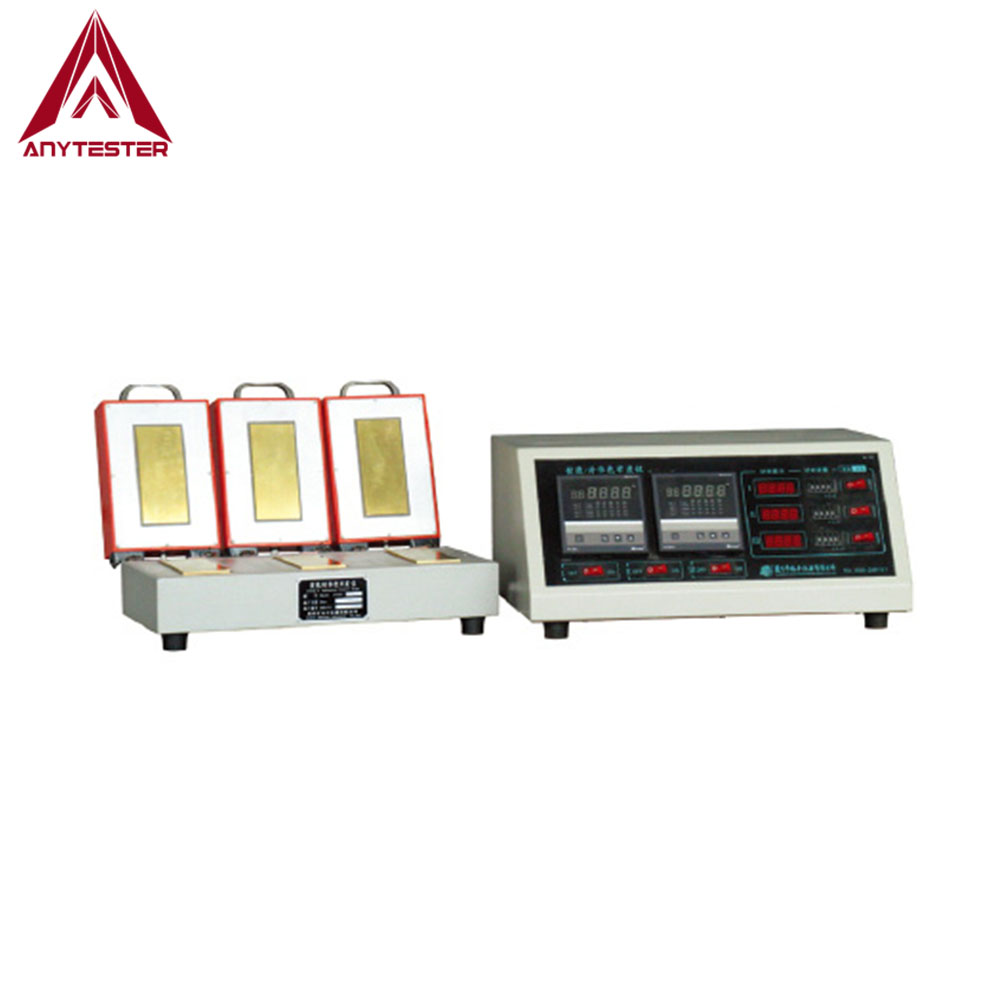

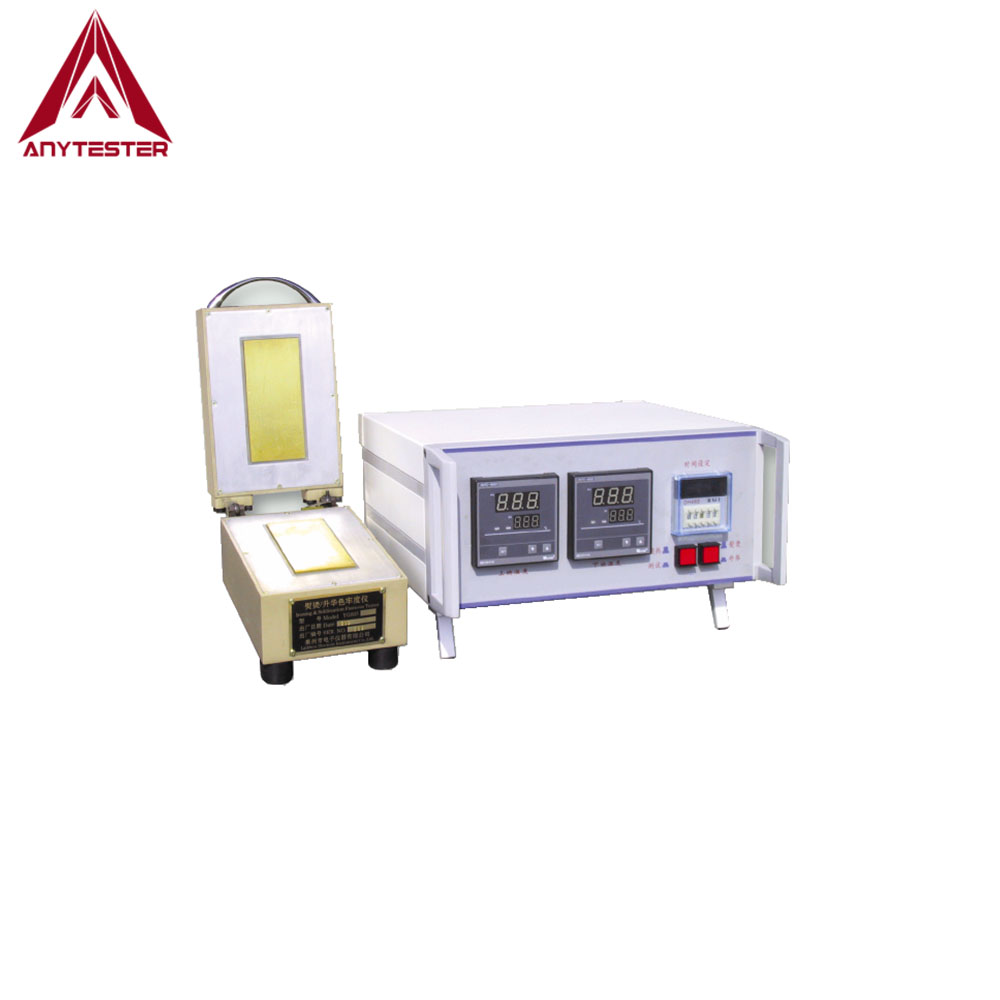

HY0605 Scorch and Sublimation Tester is used to determine color fastness and shrinkage to hot pressing and dry heat and to conduct sublimation tests.
Standards
ISO 105-P01 | AATCC 117, 133 | BS1006 |
JIS L0850, L0854, L0849 | GB/T 5718, GB/T 6152 |
Features
1. It consists of control cabinet and heating device
2. Electronic temperature controller, temperature of top and bottom plates individually controlled
3. With high quality temperature sensor, more accurate
4. With alarm function when the temperature rise to set temperature
5. Settable test time
Technical Specification
Model | HY0605 | HY0605-3 | HY0605D | |
Working position | 1 | 3 | 1 | |
Heating area | 50×110mm | 125×125mm | ||
Heating mode | Single-side & double-side | |||
Specimen pressure | 4kPa±1kPa | |||
Test time | 1~999s settable, LED display | |||
Heating time | <30min (RT~110℃) | |||
Temperature range | RT~220℃, settable | |||
Temperature error | ±1℃ | |||
Rated power | 300w per station | 500w | ||
Power supply | AC220V±10%, 50Hz | |||
Dimensions | Main machine | 120*130*350mm | 320*130*350mm | 330*280*170mm |
Control cabinet | 300mm*150mm*380mm | |||
Main machine weight | 6.2Kg | 15Kg | 18Kg |
