HY8090
Anytester
Availability: | |
---|---|
Product Description

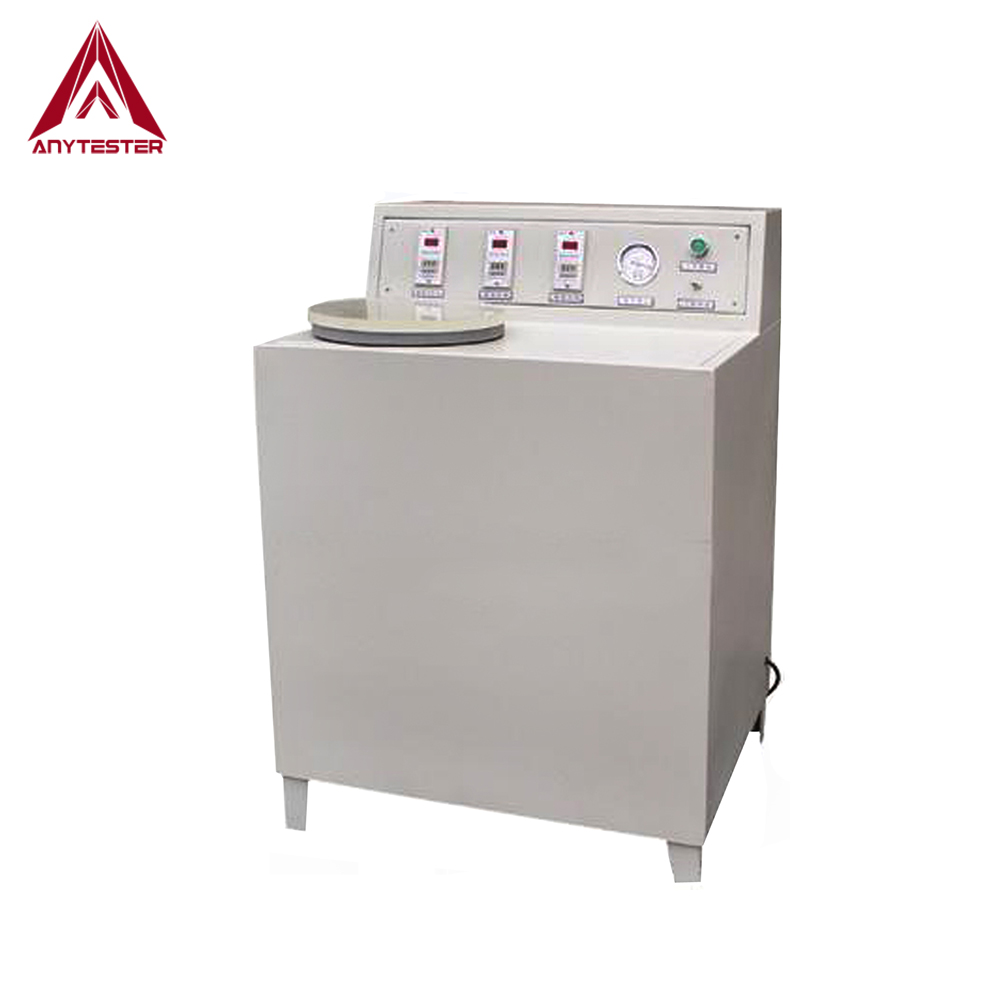

HY8090 Ceramic Tile Water Absorption Tester is used to determine the water absorption of all ceramic tiles.
Standards
ISO 10545-3 | GB/T 3810.3 | GB/T 3299 |
Features
★ It consists of vacuum container, water circulating vacuum pump, water inlet electrovalve, water drain valve, water container and digital controller;
★ The vacuum pump is not easy to damage, low noise and low power consumption.
Technical Specification
Model | HY8090 |
Vacuum degree | 0.1MPa±0.005MPa |
Vacuum keeping time vacuum | 0~120min, adjustable |
Test capacity | Ф250×300mm, Ф320×300mm or Ф400×400mm |
Water-filling time | 0~99min59s, adjustable |
Soak time | 0~99h59min, adjustable |
Power supply | AC220V, 50Hz, 180w |
