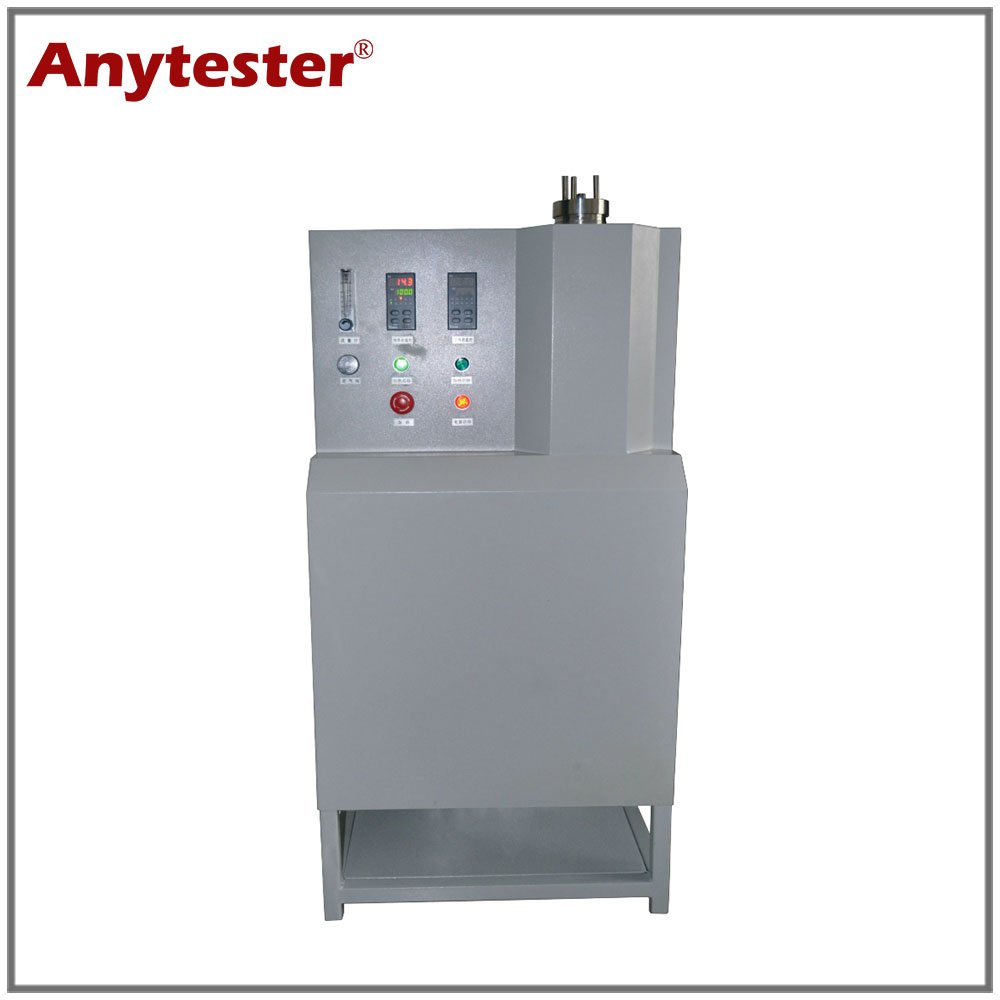

AT232A Preoxidation Furnace

Square-tube-weld sheet metal bracket with spraying plastic
  • AT232
  • Anytester
Availability:

Product Description

AT232A

1.         Square-tube-weld sheet metal bracket with spraying plastics;

2.         Heating: pre-heating tube and oxidation tube furnace separately heat and control temperature, ensuring the temperature fluctuation in the constant-temperature zone within the specified range;

3.         Oxidation furnace tube adopts two-section ceramic-loop heating and the pre-heating tube adopts the built-in stainless steel fin heating tube ;

4.         Fiber heat insulation and stainless steel shell;

5.         Air passes through valve, flowmeter, pre-heating tube, static mixing device, aerator and finally enters into oxidation furnace tube;


Technical Specification

Model

AT232A

 Size of oxidation furnace tube

¢89×1000mm (volume 5L)

Material of oxidation   furnace tube

304# stainless steel

Size of pre-heating tube

¢89×600mm

Material of pre-heating   tube

304# stainless steel

Max. heating   temperature

≤400℃

Temperature   controlling accuracy

±1℃

Max.   heating rate

5℃/min

Temperature   controlling program controlling

30 segments

Length   of constant temperature zone

400mm

Max.   air inlet flow

2.5m3/H

Power   supply

AC220V 50Hz
