HY1110
Anytester
Application

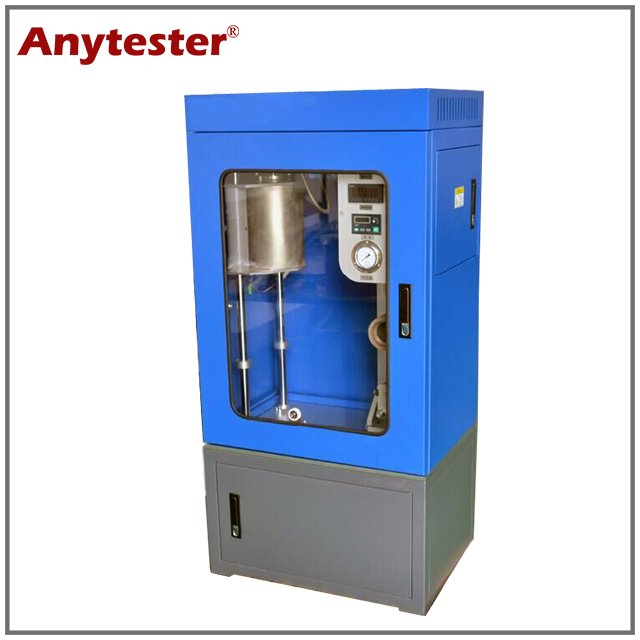

HY1110 Laboratory Melt Spinning Machine is a main key equipment in synthetic fibre production. This machine uses high temperature ceramic to heat and melt the polymer sample, and extrude the sample to be liquid trickle from a spinneret under the effect of inert gas pressure, then nascent fibers form under the effect of air cooling.
Features

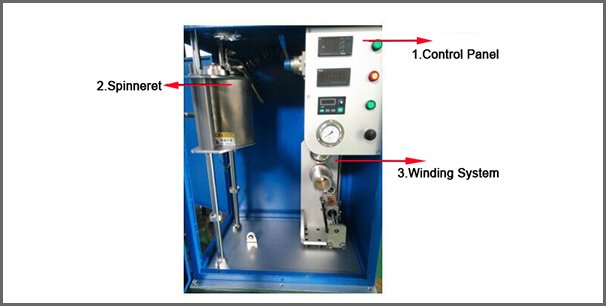

★ It consists of heating system, spinneret system, winding system;
★ It adopts perspective organic glass door, easy to observe;
★ Thicken 316 stainless steel feed cylinder to make sample heating more uniform;
★ Test temperature real-time monitoring, the max. Temprature can be 400℃;
★ Uses replaceable paper cylinder (width: 120mm).
Technical Specification

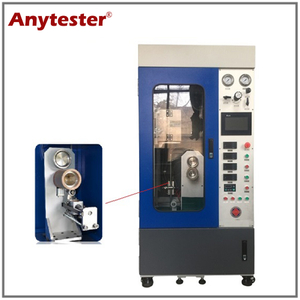

AT130 Laboratory Melt Spinning Machine | |
Pressure range | Design pressure: 3.6MPa Input pressure: ≤13MPa, Output pressure: ≤1.6MPa, accuracy: ±0.01MPa |
Temperature range | 450℃ max. |
Temperature accuracy | ±0.5℃ |
Heating mode | Two sections of heating furnace, Mullite fiber insulation |
Temperature control mode | Two pieces of temperature controller, high precision of ±0.5℃ |
Feed cylinder | 500ml, stailess steel, with soaking distribution device |
Spinneret plate | Dia. 0.2, 0.3, 0.4, 0.5 optional L:D: 2:1~3:1 optional Six holes or single hole optional (please specify before order) |
Winding system | |
Rotary head | Friction driven rotary head |
Speed range | 300~2800m/min |
Winding roller dia. | 120mm (outer diameter) |
Max. Winding dia. | 320mm |
Rotary head | Friction driven rotary head |
Power supply | AC220V, 50Hz |
Dimensions | 700mm×500mm×1700mm |
Weights | 130kg |
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Spinneret plate | 2pcs |
3. | Traverse unit | 1pc |
4. | Winding roller | 1pc |
5. | Paper bobbin | 4pcs |
6. | Stirring moter | 1pc |
7. | Packing list | 1pc |
8. | Quality certificate | 1pc |
9. | User manual | 1pc |
