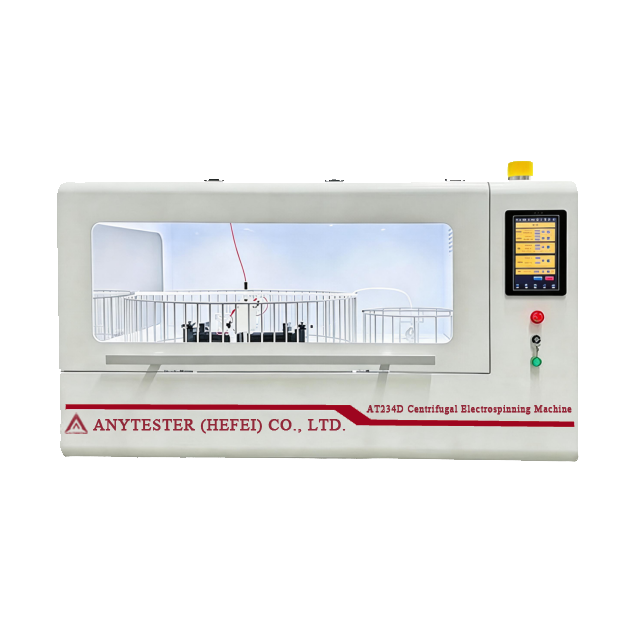

AT234D Double Centrifugal Electrospinning Machine

High voltage power supply

1.1 Output positive high voltage: Built-in, touch screen control. DC 0-positive 30KV, current 1mA;

1.2 High-speed rotating power supply system, providing reliable power supply during centrifugal operation with voltage drop of less than 1kV;

1.3 It features digital display, overcurrent protection, overvoltage protection, arcing protection, memory, reset, actual value, set value, protection value, and error code display functions;

Propulsion system

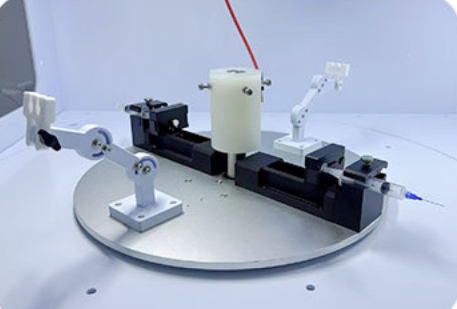

2.1 Two sets are symmetrically placed on a rotating disk, and high-speed rotation can provide stable liquid supply.

2.2 Dual-control four-channel propulsion system; two sets of injection pumps, each independently controllable. Meets the functions of coaxial spinning, multi-needle spinning, and hybrid spinning;

2.3 The flow rate can be calculated according to the syringe specifications. Automatic liquid supply speed range: 0.001～20mL/min; adjustment accuracy: 0.001mL/min; manual liquid supply speed range: 0.1-3 mm/s;

2.4 It can be used in high-pressure environments, is not easily punctured, has a wide range of applications, and is compatible with syringes of 1-20ml.

Needle holder

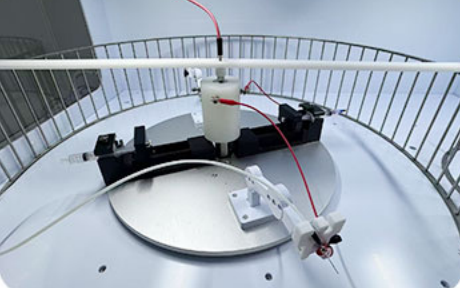

3.1 Two sets of needle holders are symmetrically arranged on a rotating disk, and can rotate at high speed together with the disk;

3.2 The bracket has a three-section adjustable design, allowing for easy adjustment of the spray angle and telescopic distance.

3.3 The spinneret has 2*2 needle insertion holes, which can accommodate various types of spinnerets such as ordinary needles and coaxial needles. The angle is adjustable, and it is equipped with a multi-needle conductive connector. The front and rear extension distance is adjustable from 0-10mm.

electrostatic centrifuge system

4.1 It can realize multiple working modes such as disc centrifugal spinning, electrospinning, and centrifugal spinning plus electrospinning.

4.2 Turntable diameter: 500mm; Turntable speed: 0~500rpm;

4.3 Collection cage height: 215mm, collection cage diameter: 900mm, collection rod spacing: 80mm, number of collection rods: 35;

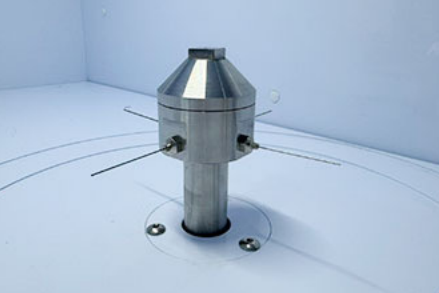

High-Speed Centrifuge System

5.1 Rotation speed: 0~12000rpm;

5.2 Centrifugation capacity: 100ml;

5.3 Dual receiving cages, outer collecting cage diameter: 380mm, collecting rod spacing: 78mm, quantity: 15; inner collecting cage diameter: 300mm, collecting rod spacing: 75mm, collecting rod quantity: 12.

Environmental control

6.1 Temperature control: Infrared heating dehumidification, room temperature -60℃, control accuracy 0.1℃.

6.2 External dehumidifier: An external independent compressor dehumidifier directly supplies dry gas to the equipment, with a minimum RH of 30%.

6.3 Ventilation system: Built-in exhaust fan can quickly remove organic gases from the cavity.

6.4 Lighting system: Equipped with operating lights to observe the spinning process.

Intelligent systems

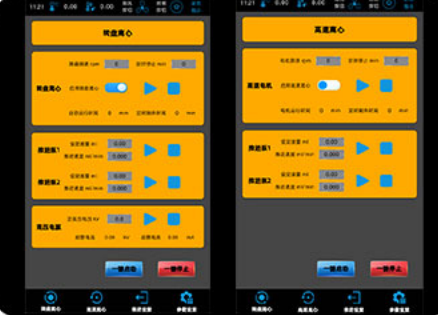

7.1 The 10-inch human-machine interface CNC system can directly control the operation of components such as high-voltage power supply, centrifugal speed, propulsion system, heating, exhaust, and lighting, as well as monitor the status of each part;

7.2 The spinning time can be set, and the equipment will automatically shut down to ensure safety;

7.3 Dual centrifugal interlocks reduce misoperation and ensure safety.

Safety protection

8.1 Equipped with discharge short-circuit protection and leakage protection;

8.2 Grounding system and static electricity elimination system to prevent electric shock, fire, explosion and other accidents caused by charge accumulation;

Spinning box

9.1 Cabinet dimensions: Length * Width * Height (1600mm × 1000mm × 1100mm);

9.2 The inner lining is made of corrosion-resistant PP insulating material.

9.3 It has two built-in high-brightness spotlights and three viewing windows, which facilitates observation of the spinning experiment from multiple angles.

9.4 The upward-opening door design increases the operating space.

High voltage power supply

1.1 Output positive high voltage: Built-in, touch screen control. DC 0-positive 30KV, current 1mA;

1.2 High-speed rotating power supply system, providing reliable power supply during centrifugal operation with voltage drop of less than 1kV;

1.3 It features digital display, overcurrent protection, overvoltage protection, arcing protection, memory, reset, actual value, set value, protection value, and error code display functions;

Propulsion system

2.1 Two sets are symmetrically placed on a rotating disk, and high-speed rotation can provide stable liquid supply.

2.2 Dual-control four-channel propulsion system; two sets of injection pumps, each independently controllable. Meets the functions of coaxial spinning, multi-needle spinning, and hybrid spinning;

2.3 The flow rate can be calculated according to the syringe specifications. Automatic liquid supply speed range: 0.001～20mL/min; adjustment accuracy: 0.001mL/min; manual liquid supply speed range: 0.1-3 mm/s;

2.4 It can be used in high-pressure environments, is not easily punctured, has a wide range of applications, and is compatible with syringes of 1-20ml.

Needle holder

3.1 Two sets of needle holders are symmetrically arranged on a rotating disk, and can rotate at high speed together with the disk;

3.2 The bracket has a three-section adjustable design, allowing for easy adjustment of the spray angle and telescopic distance.

3.3 The spinneret has 2*2 needle insertion holes, which can accommodate various types of spinnerets such as ordinary needles and coaxial needles. The angle is adjustable, and it is equipped with a multi-needle conductive connector. The front and rear extension distance is adjustable from 0-10mm.

electrostatic centrifuge system

4.1 It can realize multiple working modes such as disc centrifugal spinning, electrospinning, and centrifugal spinning plus electrospinning.

4.2 Turntable diameter: 500mm; Turntable speed: 0~500rpm;

4.3 Collection cage height: 215mm, collection cage diameter: 900mm, collection rod spacing: 80mm, number of collection rods: 35;

Main machine

1set

Quality certificate

1pc

User manual

1pc

Packing list

1pc
