AT430C
Anytester
Product Description

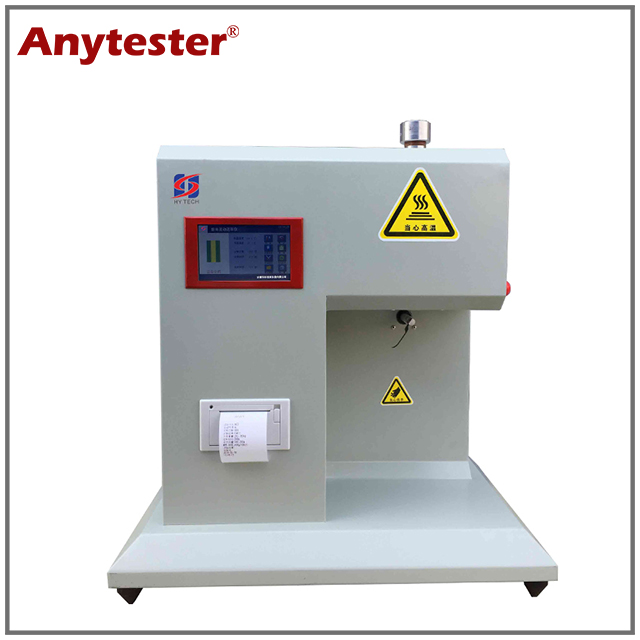

AT430C Melt Flow Index tester is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PC, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.
Standards
ASTM D1238 | ISO1133 | GB3682-2000 |
JB/T 5456 |
Note: This Melt Flow Index tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features
★ With two test methods: MFR and MVR, and also can test melt density
★ Chinese/English operate interface
★ Simple structure, easy to operate, easy to maintain
★ Touch screen control
Technical Specification
HY4310C Melt Flow Index Tester | |
Temperature range | 120℃~450℃ |
Temperature error | ＜0.2℃ |
Temperature resolution | 0.1℃ |
Heating time | ＜30min |
Temperature recovery time | ＜4 min |
Displacement accuracy | 0.1mm |
Time accuracy | 0.01s |
Flow rate measuring ragne | 0.01 ~ 200g/10min, 0.01 ~ 350m3/10min |
Standard die | Tungsten carbide, Φ2.095±0.005mm |
Height of standard die | 8.000±0.020mm |
Inner diameter of feed cylinder | Φ9.550±0.025mm |
Diameter of piston | Φ9.475±0.015mm |
Length of piston head | 6.350±0.100mm |
Power | AC220V, 50Hz, 450w |
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Weights | 1set |
3. | Standard die | 1pc |
4. | Cleaning rod | 1pc |
5. | Load rod | 1pc |
6. | Cleaning rod for standard die | 1pc |
7. | Funnel | 1pc |
8. | Tweezers | 1pc |
9. | Foot screw | 4pcs |
10. | Packing list | 1pc |
11. | Quality certificate | 1pc |
12. | User manual | 1pc |
