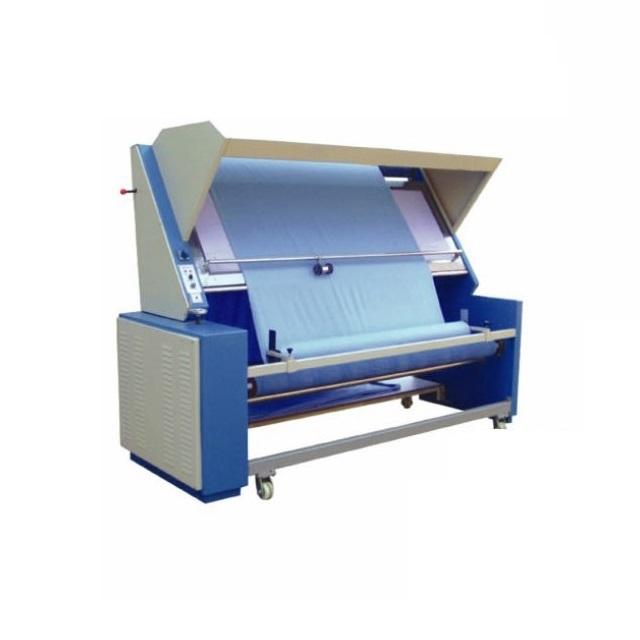

EPB-1800 Fabric Inspection Machine

EPB-1800 Fabric Inspection Machine have been designed and produced in order to prevent problems and cost increases that may rise in sewing departments of apparel producing industry due to production faults on the fabric.

  • EPB-1800

  • Anytester

Availability:
Inquire Add to Basket

Product Description

Application:

EPB-1800 Fabric Inspection Machine have been designed and produced in order to prevent problems and cost increases that may rise in sewing departments of apparel producing industry due to production faults on the fabric. Illuminated bottom screen and illumination from above provides an easy control of fabric.


Features

★ Metric counter for measuring the length of fabric that is controlled;

★ A special mechanism for fabric tension adjustment;

★ AC speed control, 0-60m/min;

★  Fitted with four direction wheel, easy to move.

★ Output fabric folding


Technical Specification:

Model

EPB-1800

Fabric width

1800mm

Max. Roll diameter

≤580mm

Speed

≤60m/min

Winding error

≤±8mm

Length measuring error

≤ ±0.3%

Power supply

AC220V, 50Hz

Dimensions

3100×1100×1920mm ( L×W×H )

Weight

450kg


Standard Configuration:

No.

Item

Quantity

1.

Main machine

1set

2.

Packing list

1pc

3.

Quality certificate

1pc

4.

User manual

1pc
