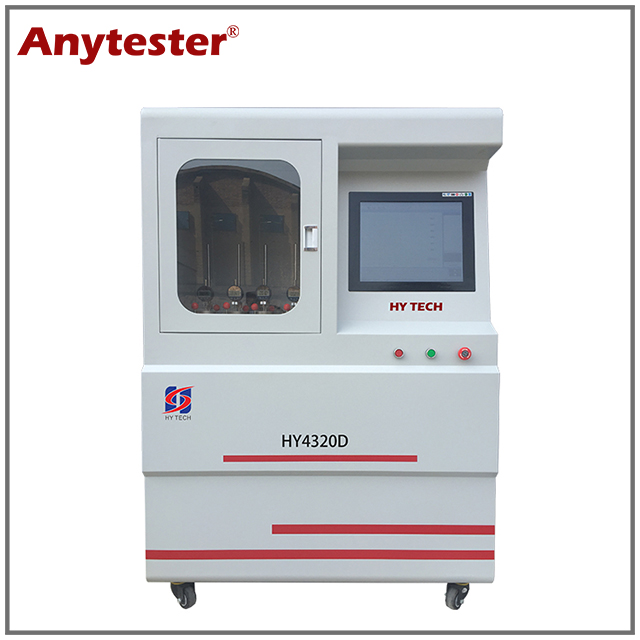

HY4320D HDT/Vicat Tester

HY4320D HDT/Vicat Tester is used to determine the heat distortion temperature (HDT) and Vicat softening point of plastic materials. It is widely suitable for plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting lamination materials and other non-metallic materials.
  • HY4320D

  • Anytester

Availability:

Product Description

HY4320D HDT/Vicat Tester is used to determine the heat distortion temperature (HDT) and Vicat softening point of plastic materials. It is widely suitable for plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting lamination materials and other non-metallic materials.


Standards

ASTM D1525, D648

ISO 2507, 75, 306

GB/T 8802,   1633, 1634

Note: This HDT/Vicat Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.

Features

3 or 4 or 6 or customized working positions can be chosen

With automatic lifting function (for HY4320D)

It adopt displacement sensor system.


Technical Specification

Model

HY4320D

Temperature range

RT~300

Heating speed

120/h [(12±1)/6min]

50/h  [(5±0.5)/6min]

Max. temperature error

±0.5

Distortion range

-0.1~1.1mm

Max. distortion error

0.01mm

Sample support span

64mm, 100mm

Working position

3 (4 or 6 optional)

Heating medium

Methyl silicone oil or transformer oil

Cooling method

Below 150: water cooling or natural cooling

Over 150: natural cooling

Dimensions

HY4320C

810mm×470mm×780mm

HY4320D

880mm×580mm×1400mm

Power supply

AC220V, 50Hz, 2500w


Standard Configuration

No.

Item

Quantity

1.

Main machine

1set

2.

Test software

1pc

3.

Sample support

3pcs

4.

Heat distortion press head

3pcs

5.

Vicat press probe

3pcs

6.

Power cord

1pc

7.

Signal line

1pc

8.

Weights

1set

9.

Packing list

1pc

10.

Quality certificate

1pc

11.

User manual

1pc
