AT065
Anytester
Product Description

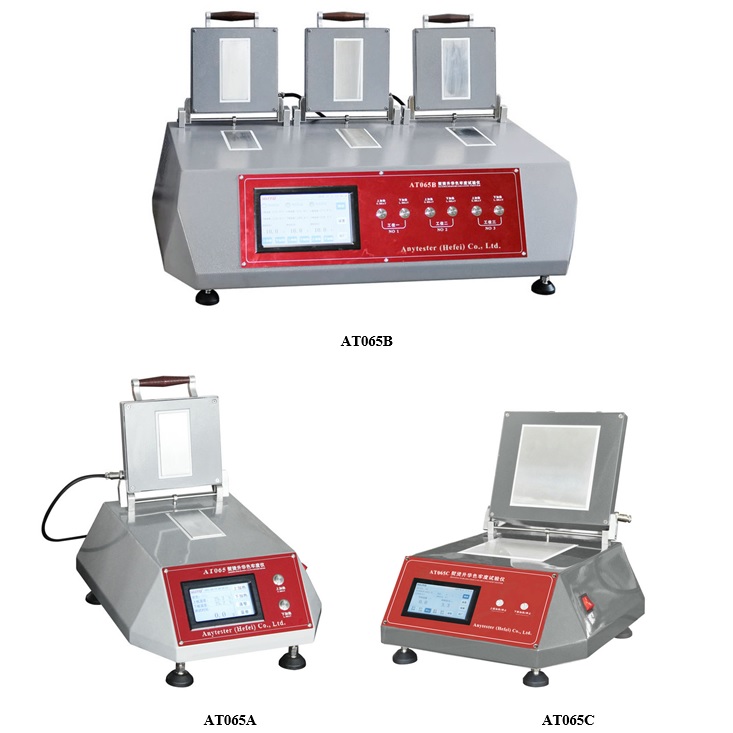

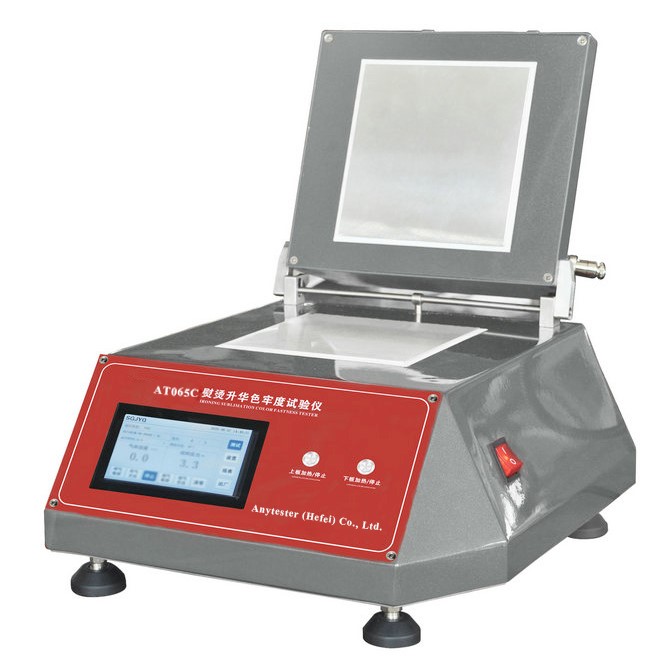

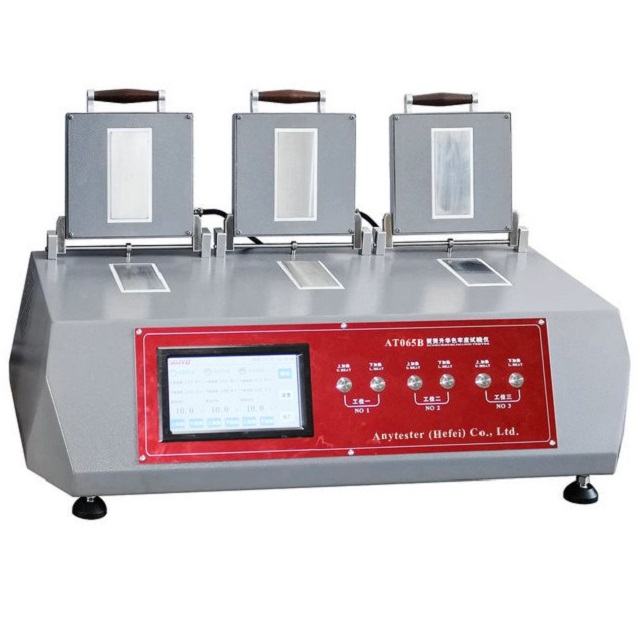

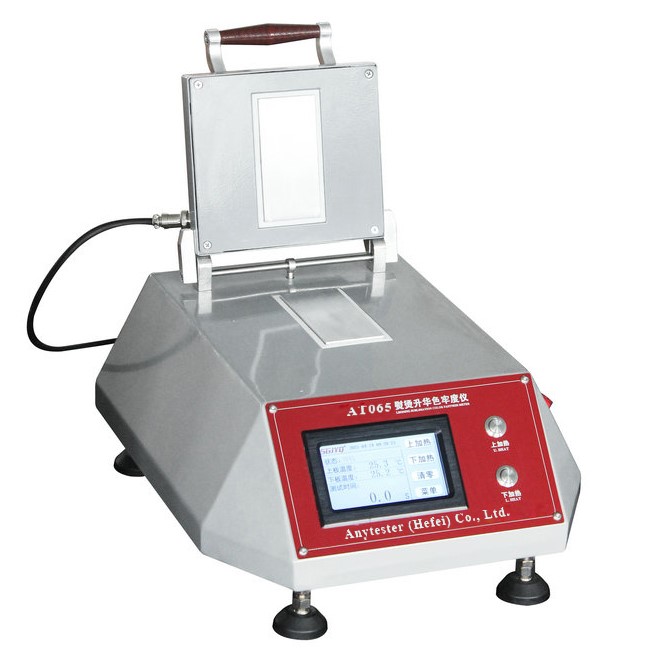

AT065 Scorch and Sublimation Tester is used to determine color fastness and shrinkage to hot pressing and dry heat and to conduct sublimation tests.
Standards
ISO 105 | GB/T 5718, GB/T 6152 | BS1006 |
Features
★ Touch screen display of temperature and time.
★ Temperature control unit with PID control function to avoid temperature overshoot, test result is more reliable.
★ Surface temperature sensor, high resolution and more accuracy
★ Digital control circuitry make the machine stable and good repeatability
★ Special design structure to protect the frame from high temperature of the heating plate.
Technical Specification
Model | AT065-1 | AT065-3 |
Number of working positions | 1 | 3 |
Heating area | 50×110mm | |
Heating mode | Single-side or double-side | |
Specimen pressure | 4kPa±1kPa | |
Test time | 0.01s~99.99H, settable | |
Time resolution | 0.01s | |
Heating time | ＜30min (RT~110℃) | |
Temperature range | RT~220℃, settable | |
Temperature error | ±1℃ | |
Rated power | 500W | 1500W |
Power supply | AC220V±10%, 50Hz | |
Dimensions | 400×400×300mm | 480×310×340mm |
Main machine weight | 17.5kg | 28kg |
