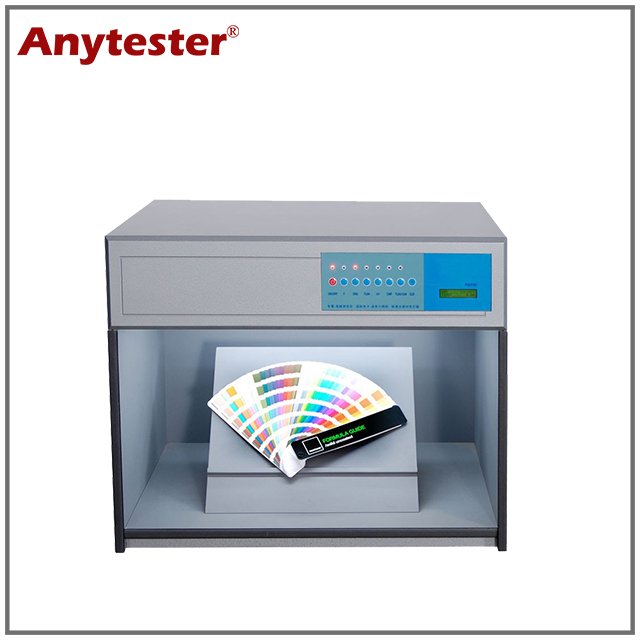

HY9020 Color Assessment Cabinet

HY9020 Series Color Assessment Cabinet is used for the assessment of color fastness of textile, printing and dyeing, printing, paper, paint and other industries and degree of the same color metamerism.
  • HY9020

  • Anytester

Availability:

Standards

ASTM D1630



Note: This  Color Assessment Cabinet  can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Features

  Color assessment cabinet with different light sources(D65, TL84, CWF, F, UV etc.) can be selected, which can detect the metamerism;

 Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.;

  Easy to operate by using individual switches for each light source

  Elapsed time meter for tracking optimal lamp replacement.


Technical Specification

Light Source

Kelvin

Application

Power

D65

6500K

International standard artificial   daylight

18W/36W

TL84

4000K

European and Japanese shop light   source

18W/36W

CWF

4150K

USA shop light source

18W/36W

F

2700K

Yellow light source

40W

A

2700K

Yellow light source

60W

UV

/

Ultraviolet lamp

18W/36W

U30

3000K

Other US shop light source

18W/36W


Standard Configuration


No.

Item

1

45 Degree stand

2

Gray Scale
