HY9020
Anytester
Product Description

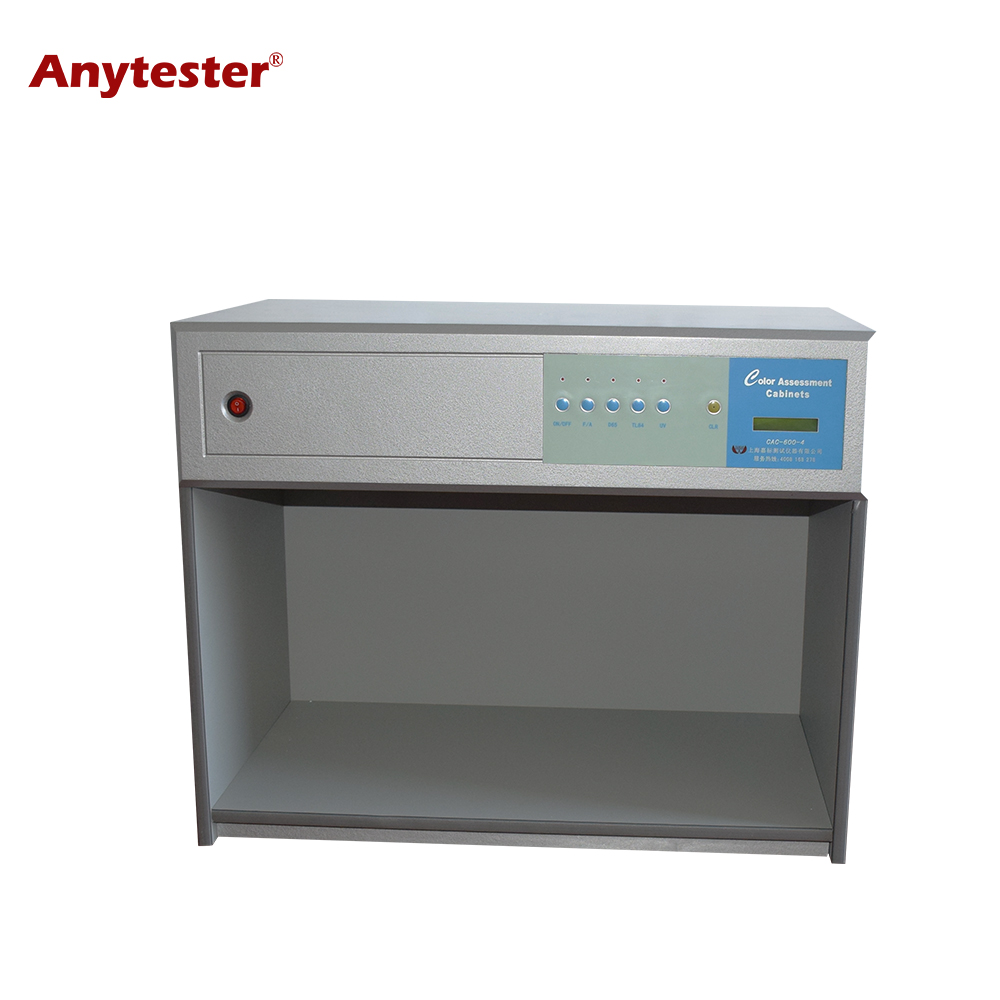

HY9020 Series Color Assessment Cabinet is used for the assessment of color fastness of textile, printing and dyeing, printing, paper, paint and other industries and degree of the same color metamerism.
Standards
ASTM D1630
Features
★ Color assessment cabinet with different light sources(D65, TL84, CWF, F, UV etc.) can be selected, which can detect the metamerism;
★ Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.;
★ Easy to operate by using individual switches for each light source
★ Elapsed time meter for tracking optimal lamp replacement.
★ Alternating among light sources
★ No warm-up time or flickering which insures quick and reliable color judgment
★ Economic power consumption and low heat generation for high light efficiency
★ Different cabinet dimension can be selected by customer
Technical Specification
Light Source | Brand name | Kelvin | Application | Power |
D65 | PHILIPS | 6500K | International standard artificial daylight | 18W/36W |
TL84 | PHILIPS | 4000K | European and Japanese shop light source | 18W/36W |
CWF | PHILIPS | 4150K | USA shop light source | 18W/36W |
F | GE | 2700K | Yellow light source | 40W |
A |
| 2700K | Yellow light source | 60W |
UV | GE | / | Ultraviolet lamp | 18W/36W |
TL83 | PHILIPS |
|
| 18W |
U30 |
| 3000K | Other US shop light source | 18W/36W |
Standard Configuration
Model | HY9020-4 | HY9020-5 | HY9020-6 | HY9020-7 |
Light No. | 4 | 5 | 6 | 7 |
D65 | 2 pcs (18W) | 2 pcs (18W) | 2 pcs (18W) | 2 pcs (18W) |
TL84 | 2 pcs (18W) | 2 pcs (18W) | 2 pcs (18W) | 2 pcs (18W) |
CWF |
| 2 pcs (18W) | 2 pcs (18W) | 2 pcs (18W) |
F | 4 pcs (18W) | 4 pcs (18W) | 4 pcs (18W) | 2 pcs (40W) |
A |
|
|
| 2 pcs (60W) |
UV | 1 pcs (18W) | 1 pcs (18W) | 1 pcs (18W) | 1 pcs (18W) |
TL83 |
|
| 2 pcs (18W) |
|
U30 |
|
|
| 2 pcs (18W) |
Over size | 710*530*570mm | |||
Net weight | 35Kg | |||
Packing list | 1 pcs | |||
Quality certificate | 1 pcs | |||
User manual | 1 pcs | |||
