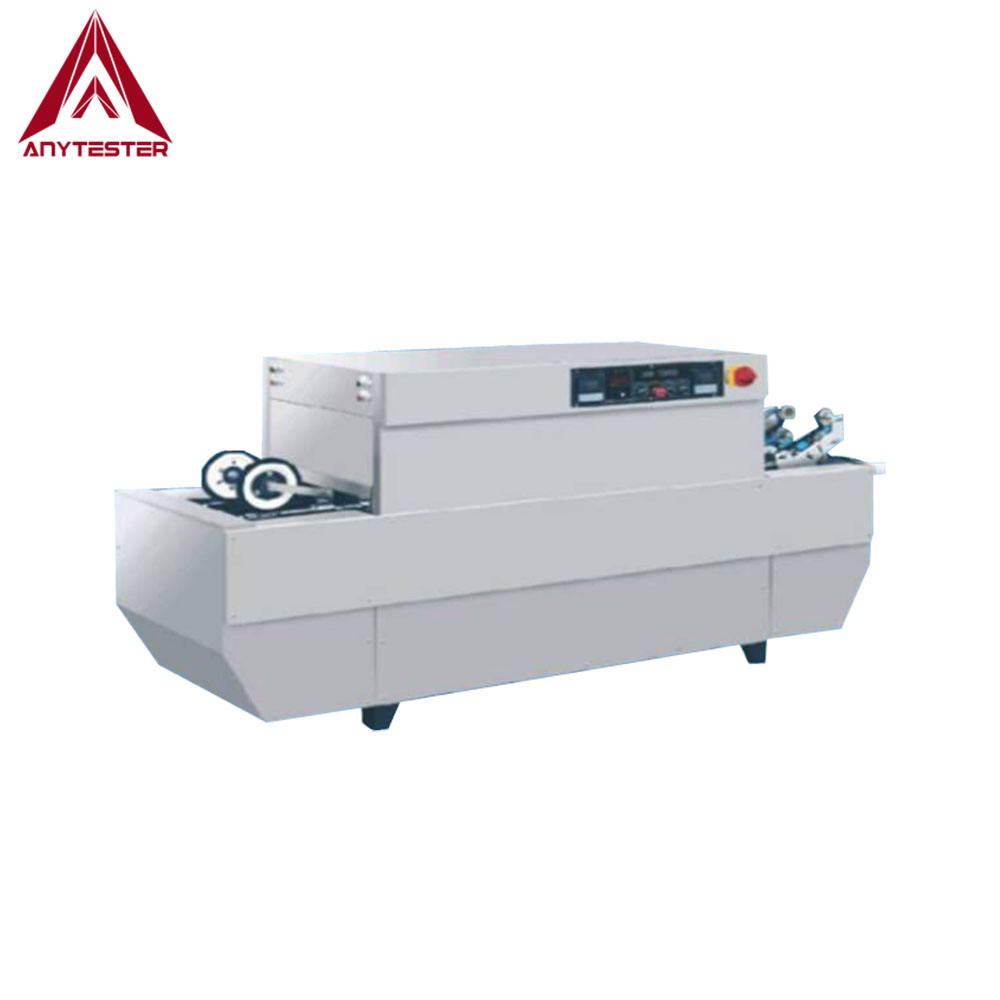

AT289C Lab Pilot-Scale Stenter

Lab Pilot-Scale Stenter is applicable for laboratory simulation of dyeing and finishing process of drying workshop. It can carry out the resin hot melt dyeing baking fixation test, and confirm the formula and technological condition of dyes, auxiliaries and other composition formula. It can also test hand feeling of fabric, dye discoloration and color fastness in order to obtain smooth and correct samples.
  • AT289C

  • Anytester

Availability:

Product Description

Lab Pilot-Scale Stenter is applicable for laboratory simulation of dyeing and finishing process of drying workshop. It can carry out the resin hot melt dyeing baking fixation test, and confirm the formula and technological condition of dyes, auxiliaries and other composition formula. It can also test hand feeling of fabric, dye discoloration and color fastness in order to obtain smooth and correct samples.


Features

★ It adopts high quality stainless steel with mirror surface which is corrosion-resistant;
★ Using two groups of temperature controller with digital display P.I.D regulator;

★ The fabric width is adjustable;

★ Feeding method:
   A, Using pin chain: feeding → dwelling time which is controlled by regulator → cloth drop

   B, Using pin frame: feeding → dwelling time which is controlled by regulator → stop automatically
★ Equips with a automatic cloth dropping device and vessel for placing the dropped cloth (If use the automatic cloth dropping device, the pin frame can not be used).

★ High efficiency, low cost.


Technical Specification

Model

AT289C

Temperature range

20~250

Temperature accuracy

±1

Fan motor

1/6HP*3 groups

Main motor for chain drive

1HP

Working width

max. 40cm, adjustable

Dwelling time

20s~60min adjustable

Power supply

AC380V, 50Hz, 18kw

Dimensions

2410*940*1390mm

Weight

Approx. 500kg
