HY0431
Anytester
Product Description

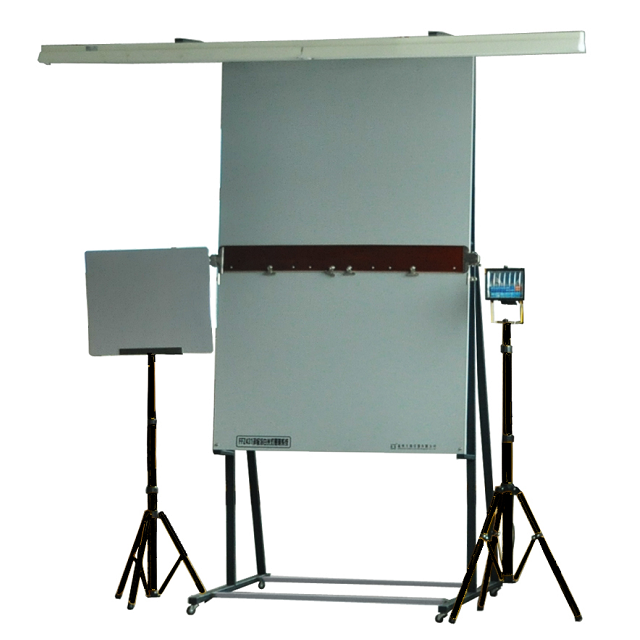

HY0431 Fabric Appearance Viewing Board is used to evaluate the smoothness in appearance of flat fabric and seams, and the retention of pressed creases. Evaluation is performed using a standard CWF light and viewing area by rating the appearance of specimens in comparison with appropriate reference standards. Lighting and evaluation should be carried out in a darkened room, using the equipment light source only. Any ambient light reflected could interfere with the rating results.
Standards
Standards:
GB/T 13769-2009 GB/T 13770-2009 GB/T 13771-2009 | ISO 7768-2006 ISO 7769-2006 ISO 7770-2006 | FZ/T 80007.3-2006 |
Note: For more standards, please contact us.
Features
★ Conforms to the lighting requirements for appearance rating equipment of multiple standards.
★ Fluorescent lamps and reflective floodlights from internationally renowned brands.
★ Height of the reflective floodlights and the shading plates is adjustable.
★ The assembled structure, more convenient for transportation.
Technical Specification
Model | HY0431 |
Viewing board width | 1500mm |
Viewing board color | Grey Confirms to rating 2 in ISO105-A03 grey scale for assessing staining |
Illumination | 1.2-meter CWF light (6500K) 2pcs in each row to form 2.4 meter illuminating length Two-row illuminating system |
Reflective floodlight (ISO 7769) | 500W |
Light-shield board (ISO 7769) | 400×400mm, adjustable height |
Power supply | AC220V 50Hz, 600W |
Dimensions | 1500×1220×2480mm（W×D×H） |
