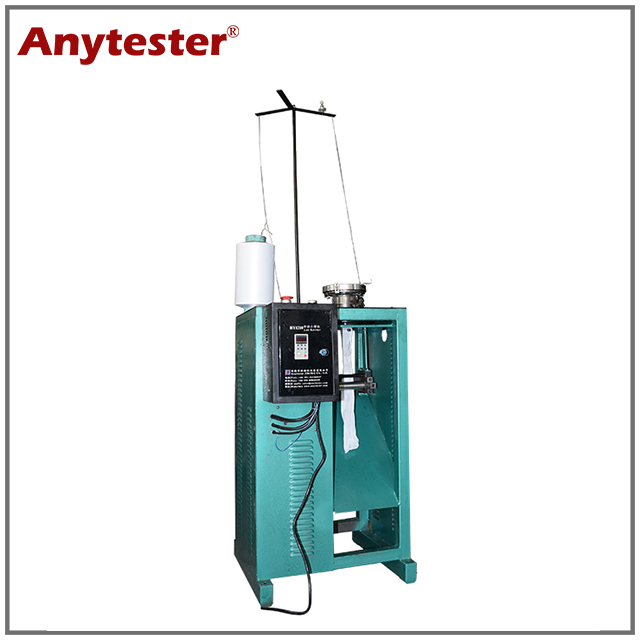

AT250F Lab Knitter

HY1210 Lab Knitter is specially designed for the yarn uniformity assessment and the dyeing affinity quality control of yarn. It will make chemical fiber or cotton yarn into cylindrical flat knitted fabric with uniform stitch density.
  • AT250F

  • Anytester

Availability:

Product Description

AT250F Lab Knitter is specially designed for the yarn uniformity assessment and the dyeing affinity quality control of yarn. It will make chemical fiber or cotton yarn into cylindrical flat knitted fabric with uniform stitch density.


Features

  Suitable for all kinds of yarns. Different cylinder diameter and different needle gauge can be chosen.

  Equipped with only one yarn feeder.

  Frequency converter control motor speed to adjust the running speed of needle cylinder.

  High efficiency, easy to operate.


Technical Specification

Model

AT250F

Lab Knitter

Needle gauge

6G-18G (select   one before you order this machine)

Cylinder   diameter

95mm

Feeder No.

1

Machine output

23~34m/h

Speed

265~385 r/min

Motor power

280W

Power supply

AC 220V±5%,   50Hz

Dimension

500×480×1600mm

Weight

Approx. 100kg
