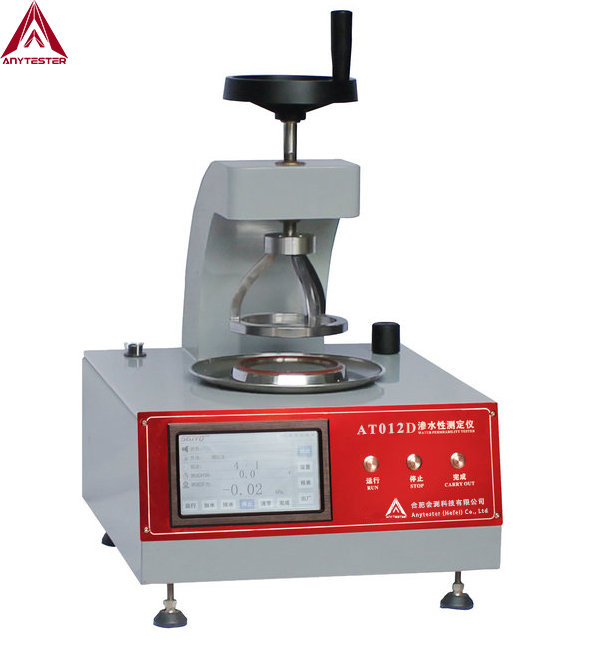

AT012D Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.
AT012D
Anytester
Application
AT012D Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.
Standards
AATCC 127 | ISO 811 | BS EN 20811 |
BS 3321, 3424-26 | JIS L 1092A | ERT 120-2-02 |
GB/T 4744 | FZ/T 01004 |
Features
★ Microcomputer control, digital setting, touch LCD operation
★ Adopt high precision pressure sensor, more accurate
★ 4 kinds of pressure range select-able:kPa, mmH2O, mmHg, mBar
★ Built-in two test modes: supercharge, constant pressure & timing, constant pressure & setting time, deflection, relaxation and leakage.
Technical Specification
AT012D-5 | AT012D-10 | AT012D-30 | |
Test ring diameter | 113mm | ||
Test area | 100cm2 | ||
Measuring range | 0 ~ 50kPa (30mH2O) | 0 ~ 100kPa (10mH2O) | 0 ~ 300kPa (5mH2O) |
Resolution | 0.01kPa | ||
Measuring accuracy | ≤±0.5% F•S | ||
Water pressure rising rate | 0.5～50kPa/min（50～5000mmH2O/min）, digital setting | ||
Timing | 0～9999999.9 | ||
Timing accuracy | ±0.1S | ||
Test unit | kPa, mmH2O, mmHg, mBar selectable | ||
Water tank capacity | 1500ml | ||
Power supply | AC220V±10%, 50Hz | ||
Power | 250w | ||
Dimensions | 380×480×460mm | ||
Weight | 25kg | ||
