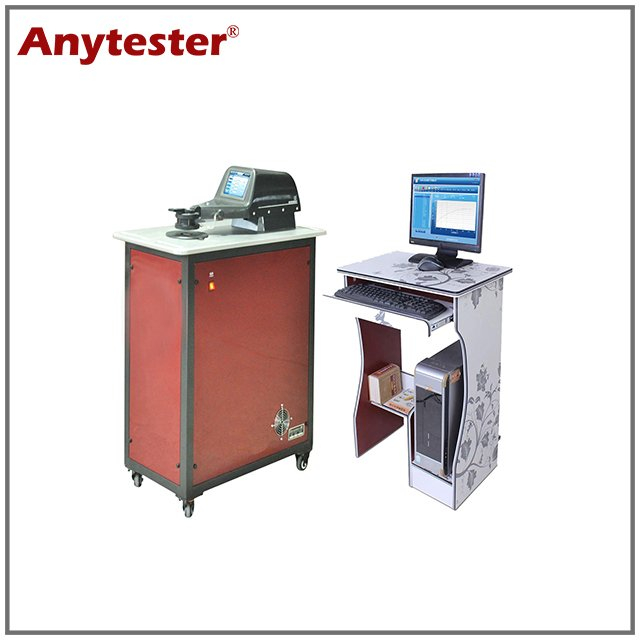

AT061E Automatically Air Permeability Tester

AT161 Automatically Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials), industrial paper (air filter paper, cement bag paper, industrial filter paper), leather, plastic, and chemical products to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.
Availability:

Description

AT061E Automatically Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials), industrial paper (air filter paper, cement bag paper, industrial filter paper), leather, plastic, and chemical products to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.


Standards

ISO   9237, 7231, 5636

ASTM   D737

BS5636

DIN   53887

JIS   L1096

GB/T   5453, 13764

Note: This Automatically Air Permeability Tester  can conform to but not limit to all the standards above, for more standards conformance, please contact us.



Features

The first successful establishment metering transfer system of permeability test based on a mass flow meter, completely solve the problem of breath quality test traceability problem, bring a substantial increase in measurement accuracy;

With two test method: Quick test (a single test time is less than 30 seconds, the results quickly);

Stable test (fan speed increase uniform, reach to set the pressure difference, keep the pressure for a certain time to come to the results, very suitable for some relatively small permeability sample to complete high-precision test)

Special designed for the large amount of test, can complete a test by just press the clamp, no need other operations, data automatically save, improve the detection efficiency;

Adopts new technology, high configuration, the whole shell adopts imported metal paint, beautiful appearance, stable performance, easy operation, no special maintenance in the future, low maintenance costs;

Adopt large-screen color touch screen to control the test, can also be used computer control test, the computer can be real-time display pressure - permeability dynamic curve, easy to control product quality, so that R & D personnel more intuitive understanding of sample breathability;

Using high-precision imported micro differential pressure sensor, the measurement results are accurate, reproducible, significantly better than the domestic counterparts production of related products;

Fully automatic measurement, put sample to specified position, the instrument automatically find the right measurement range, automatic adjustment, accurate measurement;

Pneumatic clamping sample, fully meet the requirements of a variety of materials clamping;

Adopt self-designed silencer to control the suction fan, to solve noise problems due to large pressure;

Adopt long arm clamping handle, can measure large samples without cut, greatly improve work efficiency;

Special aluminum sample table, whole shell with metal coating process, durable and nice appearance, easy to clean;

Instrument operation is very simple, even inexperienced personnel also can operate freely;

Chinese and English interface interchangeable;


Technical Specification

Model

AT061E

 Automatically Air Permeability Tester

Measuring range

0.8~14000mm/s(L/m2.s)

Resolution

0.01mm/s

Measuring accuracy

≤±1%

Sample thickness range

≤ 8mm

Clamping method

Pneumatic clamping,   automatically start the test after press the clamp

Suction volume adjustment

Auto dynamic adjustment by   feedback data

Sample test area

20cm2

Test pressure

1~2400Pa

Data processing capacity

Max. 3200

Test unit

mm / s, cm3 / cm2 / s, L /   dm2 / min, m3 / m2 / min, m3 / m2 / h, dm3 / s, cfm

Power supply

AC220V±10%, 50Hz

Power

1500w

Dimensions

550×900×1200mmL×W×H

Weight

105kg


Standard Configuration

No.

Item

Quantity

1.

Main machine

1set

2.

Calibration board

1set

3.

Liner o-ring

1set

4.

Silent air pump

1set

5.

Quality certificate

1pc

6.

User manual

1pc

7.

Packing list

1pc
