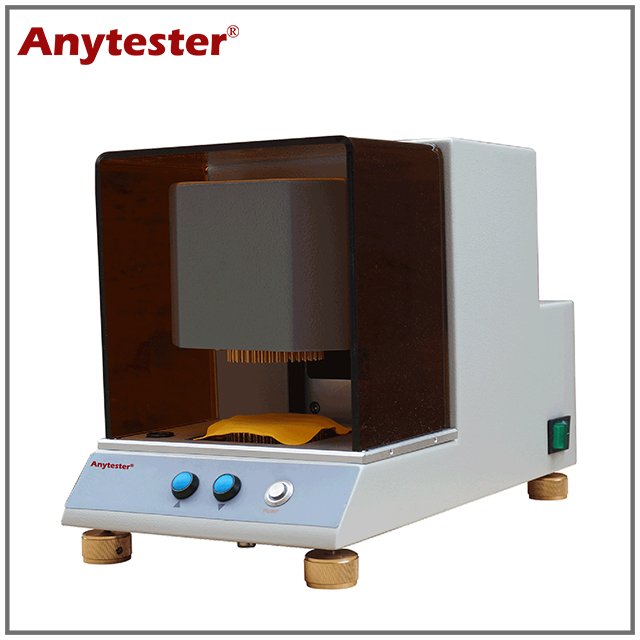

AT160 Moisture Management Tester (MMT) is an equipment to measure the dynamic liquid transport properties of textiles such as knitted and woven fabrics in three dimensions:
- Absorption Rate - Moisture absorbing time of the fabric’s inner and outer surfaces.
- One-way Transportation Capability - Liquid moisture one-way transfer from fabric’s inner surface to outer surface
- Spreading/Drying Rate - Speed of liquid moisture spreading on fabric’s inner and outer surfaces
Note: This Moisture Management Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
★ Shell all-metal structure, external interference signal has good anti-interference ability
★ Improving the structure of testing sensor, manual to automatic , the upper sensor, driven by a stepper motor built-in pressure testing equipment, to the fixed pressure automatically stop, can automatically return after the test
★ Improving the structure of the pump water ,pump water uniformly stable, and can adjust pump water flow by software，Water pump can reverse pumping, make the liquid left in the pipe return to storage tank, prevent brine crystallization plugging silicone tube
★ The test results data can send to PC by WiFi, Graphical display of water droplets diffusion process, to make the perfect test report.
Moisture Management Tester
Operation Temp & RH
18℃ to 40℃, 20% to 80% (non-condensing)
Pump On Time
Conductivity - 16 mS± 0.2 mS
110V~230V 50Hz/60Hz 0.5 A
(H) 240mm, (L) 320mm, (W) 200mm
