DTM
Anytester
Product Description

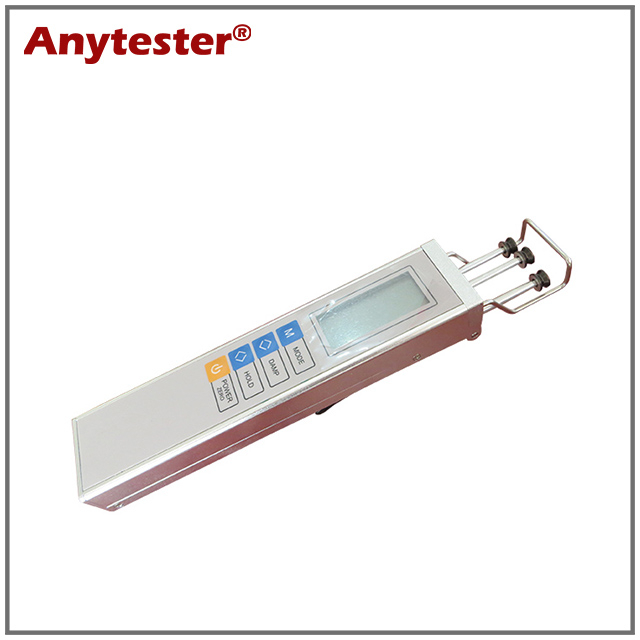

DTM Series Digital Tension Meter is used determine the tension of moving or static yarn, fine wire, plastic and thread. It’s widely used throughout the world in many different industries, such as man-made fiber industries, cotton textile industries, knitting industries, optical fiber industries, the wire industries, etc.
Features
1. Aluminum profile with Aluminum outer casing.
2. Three long and closely-spaced slender shafts with precision guide rollers, and the end of the middle slender shaft combine with the latest microprocessor technology.
3. Employ a strain-gauge system for accurately perceive and record the tension change.
4. Adjustable damping (10 steps) for easier readings when tension fluctuates,
Technical Specification
DTM50,100,200,300,500 Digital Tension Meter | DTM500,1000,2000 Digital Tension Meter | |||
Tension range | 0-50,100,200,300,500cN | 0-500,1000,2000cN | ||
Accuracy | 0.1cN | 1cN | ||
Guide roller | Ceramic pole | V-groove | ||
Standard width | Dilated | Solidified aluminum | Stainless steel | |
Max wire speed | 6000m/min | 900m/min | 450m/min | |
Application | Fine wire, yarn, plastic wire | Wire, plastic thread | ||
Over range | Approx. 10% full scale, without accuracy guarantee | |||
Overload protection | 150% of tension range | |||
Sampling rate | Approx.5 kHz(internal only) | |||
Display update rate | Approx.4 times/sec | |||
Measuring deflection | 0.5mm max. | |||
Temperature range | 10~45℃ | |||
Air humidity | 85% RH, max | |||
Instrument dimensions | 220×52×46mm(L×W×H) | |||
Box dimensions | 350×270×80mm(L×W×H) | |||
Weight, net (gross) | Approx. 500g (1020g) | |||
Power supply | Alkaline Battery(2×AA, about 50h of continuous use) | |||
