AT415 Notched Constant Tensile Load Tester

HY4151 Notched Constant Tensile Load Tester is used to evaluate the stress crack resistance of notched plastic sheet under constant tensile load.
  • AT415

  • Anytester

Availability:

Product Description

HY4151 Notched Constant Tensile Load Tester is used to evaluate the stress crack resistance of notched plastic sheet under constant tensile load.


Standards

ASTM D5397



Note: This  Notched Constant Tensile Load Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Feature

6 test units can work separately, easy to operate, accurate and reliable


6 test units, 5 working positions per test unit, can test 30 specimens at the same time, high efficiency

With automatic water supply function, double stirring motors to ensure small temperature fluctuation in the bath

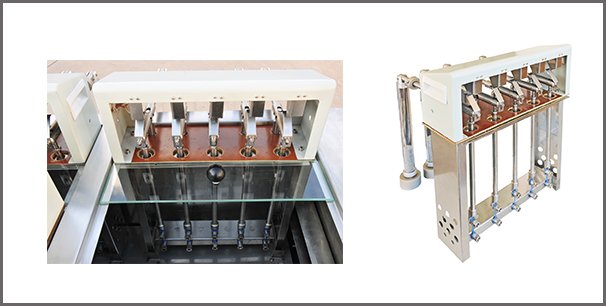

Specimen supports designed with glass cover plate, can prevent water evaporation to control liquid concentration, also convenient to observe the test condition.


Automatic temperature control, concentration control and breaking time record


Technical Specification

Model

HY4151-II

No. of test unit

6 or customize

Working position

5pcs per test unit

Load range

200~1370g

Tube weight

196±3g

Tube bearing weight

600g

Timing range

1s~9999h59min59s

Timing accuracy

1s

Timing deviation

1min

Volume of bath

125L

Temperature control range

RT~80

Display resolution

0.1

Temperature accuracy

±0.5

Clamp axis diameter

Φ6

Operation temperature

10~35

Heating power

3.0kw

Power supply

Single phase,   (187~242) VAC, 50Hz, 4.5kw

Dimensions

1900×500×1400mm (L×W×H)

Weight

180kg


Standard Configuration

No.

Item

Quantity

1.

Main   machine

1set

2.

Stainless   steel tube

1set

3.

Balance lead granular

50kg

4.

Notch   device

1set

5.

Punching machine

1set

6.

Sample cutter

3pcs

7.

Rivet   device

1set

8.

Hammer

1pc
