Fibre Specific Resistance Tester

Availability:
Inquire Add to Basket

Product Description

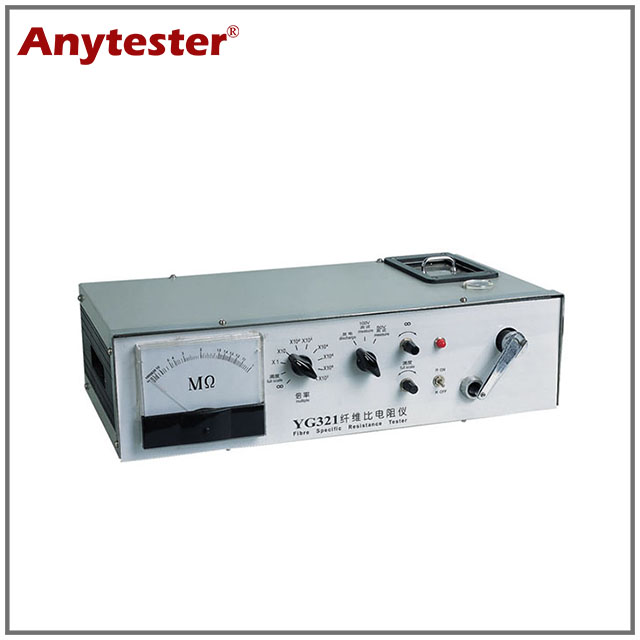

YG321 Fibre Specific Resistance Tester is used to determine the specific resistance value of various fibres. It is suitable for polyester, polyamide, polyacrylonitrile, polypropylene, polyvinyl formal and other chemical fibres.


Standards

GB/T 14342



Note: This Fibre Specific Resistance Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Feature


Model

YG321

Fibre Specific Resistance Tester

Measuring range

106~1013Ω

Sample weight

15g

Test voltage

50V,   100V
  deviation: ＜±5%

Operation environment

Temperature:   20℃±2℃
  Humidity:65%±10%RH

Power supply

AC220V   50Hz

Dimensions

460mm×260mm×130mm (L×W×H)

Weight

12kg


Standard Configuration

No.

Item

Quantity

1.

Main machine

1set

2.

Packing List

1pc

3.

Qualified certificate

1pc

4.

User manual

1 copy
