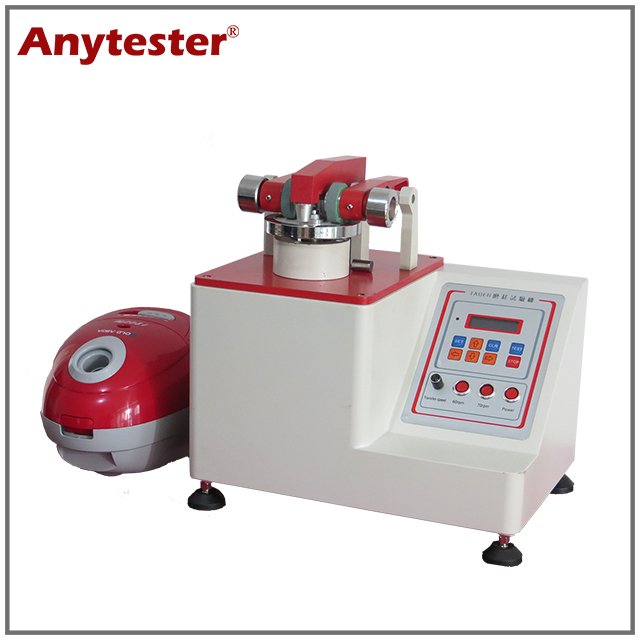

HY3430 Taber abrasion tester

  • HY3430
  • Anytester
Availability:

Product Description

HY3430 TABER Abrasion Tester is used to determine the abrasion resistance of rubber product, plastic film and textile, it is also suitable for leather, carpet and other material.


Standards

ASTM D3884

ISO 5470-1

DIN53863.2

Note: This TABER Abrasion Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Feature

Body is made up of high quality material

Testing speed is settable

Select high quality components


Technical Specification

Model

HY3430-II

Taber abrasion tester

Specimen size

φ116mm×φ9mm

Abrasive wheel

Diameter

2”

Thickness

1/2”

Rotating speed

30~90rpm adjustable

Distance between abrasive wheel and sample center

37~38mm

Load

500g, 750g, 1000g, 1250g

Counter

0~999,999

Power supply

AC220V 50Hz or customized

Dimensions

516mm×300mm×417mm

Weight

40kg
