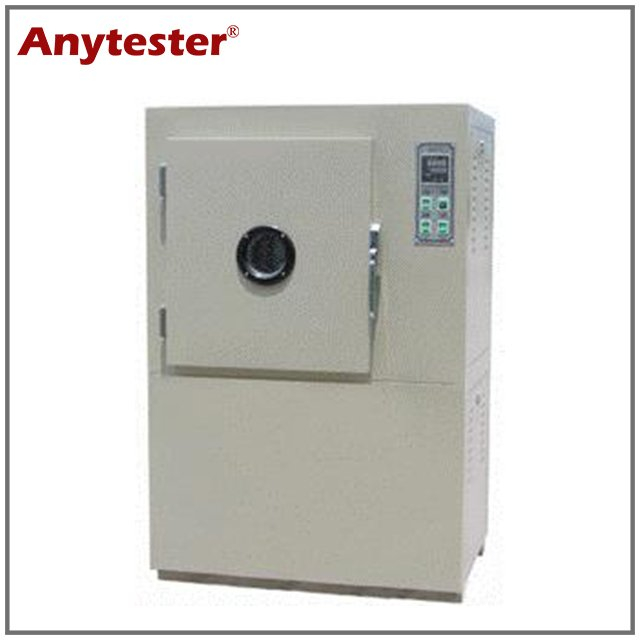

HY3710A/B Heat Ageing Test Chamber

HY3710A/B Heat Ageing Test Chamber is suitable for accelerated ageing and heat resistance tests by air-oven method. It is applicable for thermoplastic rubber, plastic electrical insulation and other material. It conforms to ISO 188, GB/T 3512, etc.
  • HY3720A/B

  • Anytester

Availability:

Product Description

HY3710A/B Heat Ageing Test Chamber is suitable for accelerated ageing and heat resistance tests by air-oven method. It is applicable for thermoplastic rubber, plastic electrical insulation and other material. It conforms to ISO 188, GB/T 3512, etc.


Features

Digital display temperature, PID control

Can pre-set working time, automatically keep the constant temperature

Equipped with turning table of low turning speed inside the test chamber (for HY 3710A)

Working temperature can be chosen as 200℃or 300℃, please inform before order


Technical Specification

Model

HY3710A

HY3710B

Working temperature

200

300

200

Temperature fluctuation

≤±0.5

≤±0.5

≤±0.5

Temperature uniformity

≤±1

≤±1

≤±1

Air speed

0.5-1.5m/s

0.5-1.5m/s

0.5-1.5m/s

Power

2.2kw

4kw

1.8kw

Turing speed of turning table

11-12r/min

11-12r/min

       /

Ventilation rate

3-10 times/h

3-10 times/h

0-100 times/h

Power supply

220V 50Hz

220V 50Hz

220V 50Hz

Dimensions of test chamber

50×450×500mm

50×450×500mm

450×450×450mm

Overall dimensions

870×700×1350mm

910×740×1400mm

1020×580×750mm

Weight

75kg

90kg

120kg


Standard Configuration

No.

Item

Quantity

1.

Main   machine

1set

2.

Pack list

1 pcs

3.

Quality certificate

1 pcs

4.

User manual

1 pcs
