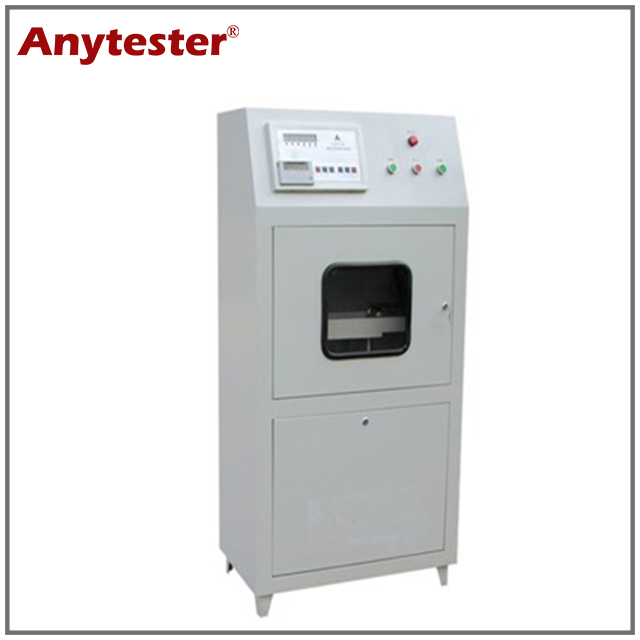

HY4280 Corner Strength Tester

HY4280 Corner Strength Tester is mainly used to measure the fracture strength of plastic door leaf and door frames corner parts, plastic profiles and plastic doors and windows. It is a necessary testing equipment for chemical building materials research units.
  • HY4280
  • Anytester
Availability:

Application

HY4280 Corner Strength Tester is mainly used to measure the fracture strength of plastic door leaf and door frames corner parts, plastic profiles and plastic doors and windows. It is a necessary testing equipment for chemical building materials research units.


Standards

EN 12608

GB/T 8814

GB/T 11793.3

Note: this Corner Strength Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Features

★ It adopts advanced micro-computer control;

★ With high precision load cell, the test result is accurate and reliable;

★ Digital display, can directly read out the test result;

★ High automation, easy to operate;


Technical Specification

Model

HY4280

Measuring range

0~20kN

Display error

±1%

Load speed

50±5mm/min

Workbench

Sliding plate support

Dimensions

740×400×1500mm

Weight

90kg

Power supply

AC220V, 50Hz


Standard Configuration

No.

Item

Quantity

1.

Main machine

1set

2.

Load sensor

1pc

3.

Sliding plate surpport system

1set

4.

Packing list

1pc

5.

Quality certificate

1pc

6.

User manual

1pc
