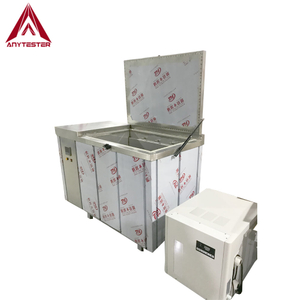

Pipe Thermal Cycling Tester

Thermal Cycling Tester is designed according ISO and ASTM standard requirement; it's mainly used to check the leakage status of composite pipe & fittings when subjected to specify cycling times under specified internal pressure load. It’s widely used in plastic pipe manufacture factory and some Labs.
  • AT4730

  • Anytester

Availability:

Product Introduction

AT473 Thermal Cycling Tester is designed according ISO and ASTM standard requirement; it is mainly used to check the leakage status of composite pipe & fittings when subjected to specify cycling times under specified internal pressure load. It's widely used in plastic pipe manufacture factory and some Labs.

Standard

ASTM F 1335-98

ISO 10508, 15875

BS EN   12293

CJ/T   138, 175

GB/T   18742, 18992, 18993, 18998, 19472


Note: For more standards, please contact us

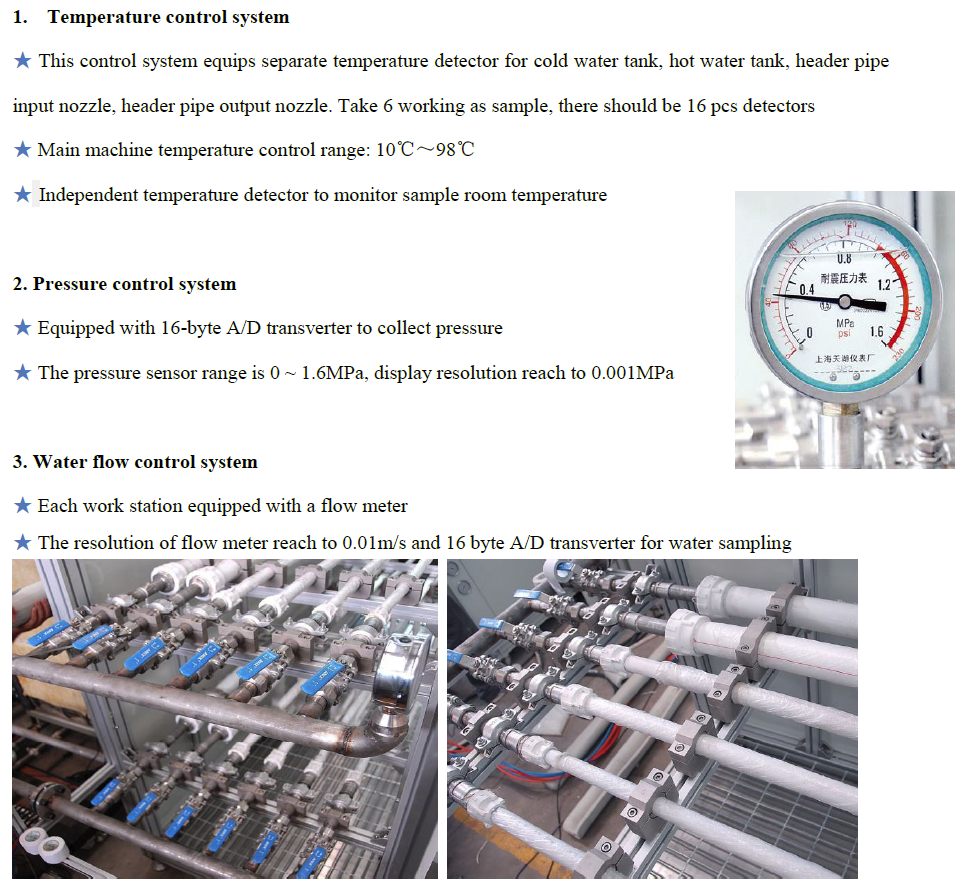

Features


Technical Specification

                              Model

HY4730

Max. pressure

1.6MPa

Pressure control accuracy

±0.05Mpa

Pressure display   resolution

0.001Mpa

Number of test stations

6 (can customize)

Alternation time between   hot water and cold water

1 min

Cycle period

300 ~ 1200s

Number of cycles

1 ~ 10,0000 adjustable

Cold water temperature   range

15 ~ R.T adjustable

Cold water temperature   accuracy

±2

Hot water temperature   range

R.T ~ 98

Hot water temperature   accuracy

±1

Temperature display   resolution

1

Temperature uniformity

≤±1

Water flow accuracy

0.01m/s

Water flow display   resolution

0.001m/s

Ambient temperature

23℃±2

Max. total cross-section   diameter of all connect test samples

6200mm2 (2*Φ63)

Power supply

3phase, AC380V, 50Hz, 25KW

Dimensions

4600×2900×2000mm


Configuration

No.

Item

Quantity

1.

Main machine

1 set

2.

Sample chamber

1 set

3.

Cold water tank

1 set

4.

Chiller

1 pcs

5.

Heat exchanger

1 pcs

6.

Hot water tank

1 set

7.

Heater for hot water tank

1 pcs

8.

Control system

1 pcs

9.

Pipe fixed system

1 set

10.

Packing list

1pc

11.

Quality certificate

1pc

12.

User manual

1pc
