AT085K
Anytester
Product Description

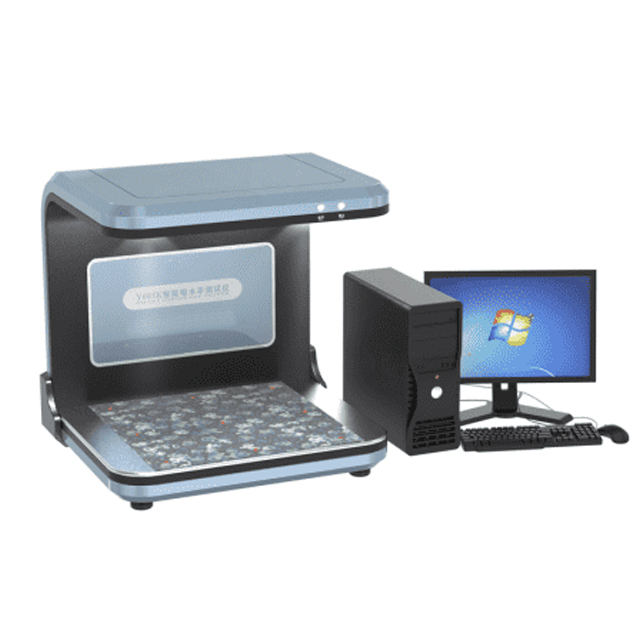

AT085K Intelligent Dimensional Stability Tester is used to determine the dimensional stability of fabric after washing, steaming, stifling or ironing.
Standards
GB/T8630 | BS EN/ISO 3795 | AATCC 135 |
Parameters
Model | AT085K |
Marking range | 500×500mm 350×350mm 250×250mm (10×10inch, 15×15inch, 18×18inch, can be customized) |
Maximum sample range | 600×600mm |
Measuring resolution | 0.1mm |
Measuring time | Less than 5s |
Power supply | AC220V 50Hz |
Wattage | 270W |
Dimensions | 800×750×720mm |
Weight | Approx. 40kg |
Features
★ High-precision industrial camera, automatic measurement of distance between marks.
★ Automatic measurement of fabric shrinkage rate and calculate test result, more accurate and reliable.
★ Automatic saving of test data and sample picture.
★ Automatic measurement of distance between marks.
★ Infrared laser positioning probe can directly position and mark.
★ Test result can be directly upload onto ERP or LIMS system in the factory.
