HYE500
Anytester
Product Description

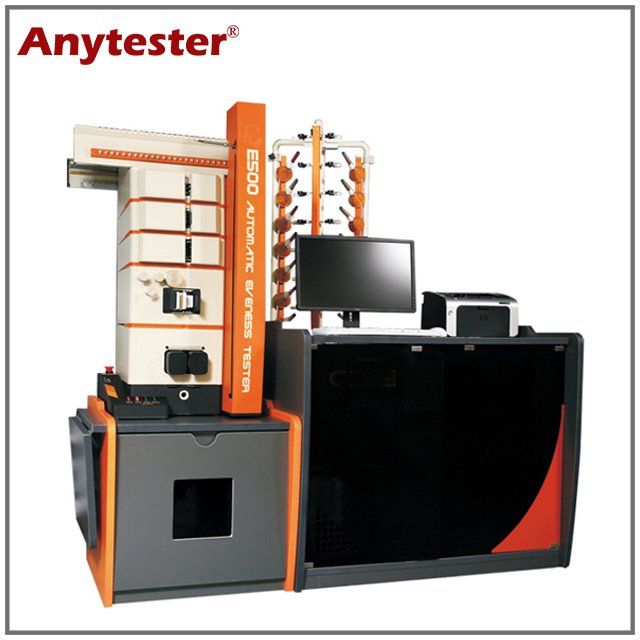

HY-E500 Automatic Yarn Evenness Tester is used to test evenness of yarns, roving, slivers which are spun with cotton, wool, flax and short synthetic fiber.
Features
★ Independent of the modular design, each test module is relatively independent of the test unit, easy to use, maintenance and upgrading.
★ Multi-function for various yarn and equipped with hairiness detecting parts
★ Operator can stop the machine whenever to check the stetted defect on yarn
★ Photoelectric detect parts to check average diameter, CV, curve of the yarn which contain metal
★ Operator can insert sample value to any group without change the result and store the insert value can be
★ Our machine can automatic stop when sample breaking and record current value.
★ Imported electronic speed regulating system feature with accurate rotation speed and high test precision;
★ Statistic analyzing system can put out annals, seasonal report, monthly report, daily report of testing data for some material, and distribution diagram of index tendency;

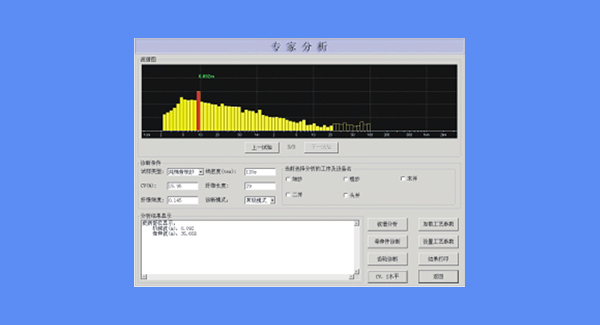

★ Expert system (optional) can help user to analyze failures in the textile technology. It also can compare the yarn with USTER statistics.
Technical Specification
Model | HY-E500 Automatic Yarn Evenness Tester | |
Capacitance parts detect range | 4tex ~ 20ktex | |
Hairiness range | 4tex ~ 160tex | |
Photoelectric parts detect range | D ≤1.5mm （optional） | |
Testing speed | 4, 8, 25, 50, 100, 200, 400, 800m/min | |
Testing time | 0.5-20min settable | |
Test length | Max.10000m | |
Test times | 1 ~ 24 tubes/group | |
CV% (U%) range | 0 ~ 99.99% | |
Capacitance parts | Thin | -30%, -40%, -50%, -60% |
Thick | +35%, +50%, +70%, +100% | |
Neps | +140%, +200%, +280%, +400% | |
Photoelectric parts | Thin | -16.5%, -22.5%, -29.5%, -37% |
Thick | +16%, +22.5%, +30.5%, +41.5% | |
Neps | +55%, +73%, +95%, +124% | |
DR% range | 0 ~ 99.99% in 1m±5% | |
Spectrogram range | 0.01 ~ 3011m | |
Spectrogram channels | Standard: 86 pcs Fine: 175 pcs | |
3D Spectrogram | 1 ~ 12 pcs / screen, max. 24 pcs | |
Hairiness detect index | H value, Sh value | |
Hairiness graph | Spectrogram, CV curve etc. | |
Air source | 0.3 ~ 0.6 MPa (optional) | |
Power supply | AC220V±10% 50Hz | |
Power consumption | ≤750W | |
Weight | 140kg | |
Standard Configuration
Item | Quantity | |
1. | Main machine (Detector) | 1 set |
2. | Industrial PC | 1 set |
3. | Monitor | 1 set |
4. | Yarn spun frame | 1 set |
5. | Software | 1 copy |
6. | Packing list | 1 pc |
7. | Quality certificate | 1 pc |
8. | User manual | 1 pc |
