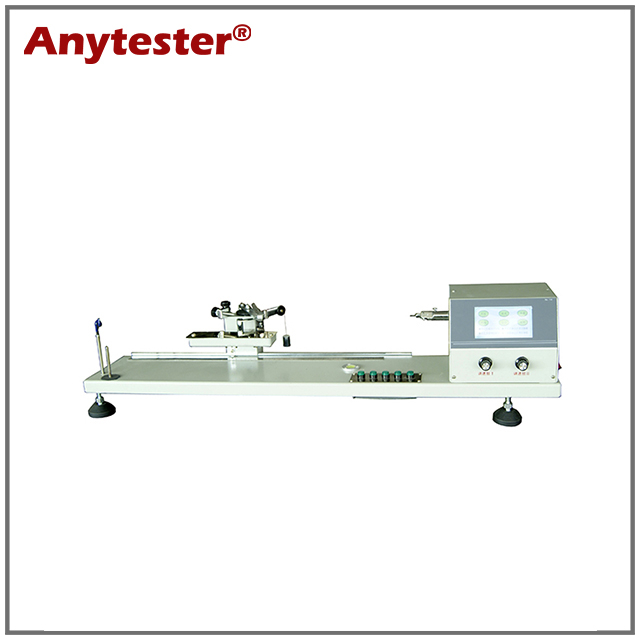

Electronic Yarn Twist Tester

HY0331D Electronic Yarn Twist Tester is used to determine yarn twist of single yarn, plied yarns and all the other yarns by conventional or untwist/re-twist method.
  • HY0331D

  • Anytester

Availability:

Product Description

HY0331D Electronic Yarn Twist Tester is used to determine yarn twist of single yarn, plied yarns and all the other yarns by conventional or untwist/re-twist method.


Standards

ISO 2061

GB/T 2543.1, 2543.2

BS 3356

Note: This Electronic Yarn Twist Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.



Features

  Large touch screen control, easy to operate

  It is suitable for various yarns

  Adjustable pre-tension according to yarn category

  Adopt micro-computer control, with automatic data processing, display and printout, accurate, stable and reliable

  It can also be connected to computer to achieve more analysis function

  With imported dedicated clock circuit, the system time can be printout on the report.


Technical Specification

Model

HY0331D

Electronic Yarn Twist Tester

Twist range

1~1999twist

Test times

100times

Linear density

1~499.9tex

Test length

10~500mm, settable

Test method

F0: Direct counting method
  F1: Untwist/re-twist method (method A)

F2: Untwist/re-twist method (method B)

F3: Three times of untwist/re-twist method

Test speed

100~1900r/min, stepless adjustable

Jog speed

100~1900r/min, stepless adjustable

Power supply

AC220V±10% 50Hz

Rated power

20w

Dimensions

890mm×290mm×215mm

Weight

11kg


Standard Configuration

No.

Item

Quantity

  1. 1.

Main machine

1set

  1. 2.

Packing list

1pc

  1. 3.

Quality certificate

1pc

  1. 4.

User manual

1pc
