Product Description

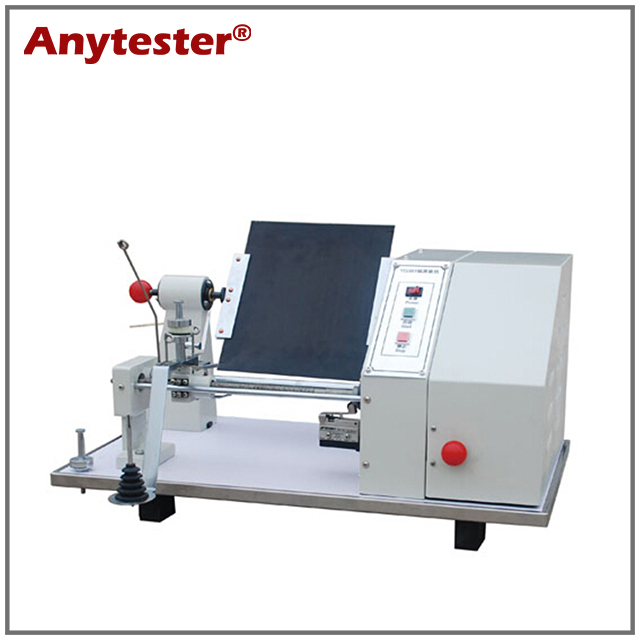

HY0381 Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black board.
Standards
ASTM D2255 | GB/T 398, 5324, 9996 | FZ/T 32004, 32005 |
Note: This Yarn Examine Machine can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features
★ Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test
★ Various pitch to satisfy comprehensive requirements of different yarn linear density
★ Two type board for selection, White board for colored yarn (HY381A)
★ Equipped with alternative pre-tension
Technical Specification
HY0381 | HY0381A | HY0381M | |
Black board size | 220×250mm (L×W) | 575mm ×250mm ×160mm (L×W×W) | 300×225mm (L×W) |
Yarn winding density | 7, 9, 11, 13, 15, 19wraps/cm | 35, 40, 45, 50wraps/10cm | |
Rotational speed | 10~400RPM (adjustable) | ||
Power supply | 220V, 50Hz, 40W | ||
Dimensions | 620×370×340mm(L×W×H) | 1000×370×300mm | 620×370×340mm(L×W×H) |
Weight | 30Kg | 35Kg | 30Kg |
Standard Configuration
No. | Item | Quantity |
1. | Main machine | 1set |
2. | Black board | 1 pcs |
3. | Packing list | 1 pcs |
4. | Quality certificate | 1 pcs |
5. | User manual | 1 pcs |
