AT276B
Anytester
Product Description

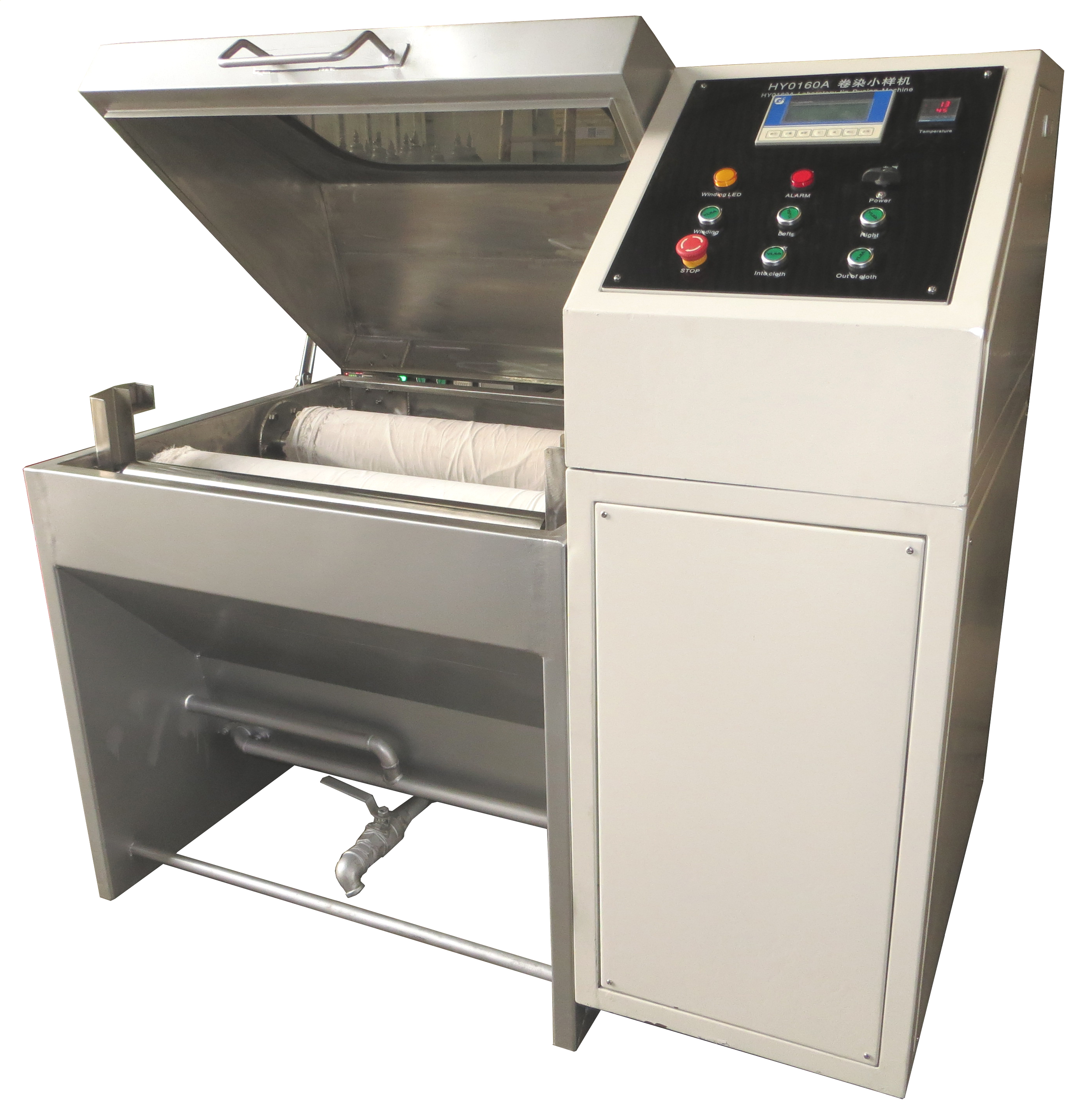

Precision lab-scale jig dyeing for cotton, flax, and natural fibers — engineered to eliminate dyeing failures, reduce development cost, and accelerate new dyeing formula creation.
Versatile lab-scale dyeing for natural fiber textiles and process development
Reactive, direct, and vat dyeing of cotton fabrics with precise temperature and speed control for consistent shade matching.
Optimized for flax fiber dyeing with adjustable fabric tension and speed to handle delicate linen weaves.
Desizing, scouring, and bleaching processes for natural fiber fabrics prior to dyeing — all on one machine.
Develop and validate new dyeing recipes at lab scale before full production — saving time, materials, and cost.
Engineered for precision, durability, and operator convenience
Intuitive touch screen control panel provides simple, visual operation — set parameters, monitor cycles, and track dyeing progress at a glance.
Built-in transparent observation window allows real-time monitoring of the dyeing process without opening the hood, maintaining stable temperature.
Dual-roller mechanical constant-speed system ensures uniform fabric speed throughout the dyeing cycle, delivering consistent dye uptake and shade uniformity.
Digital display automatic temperature control system accurately measures and regulates dye liquor temperature from RT to 98°C with ±2°C accuracy.
Imported SUS304 stainless steel dyeing tank with trapezoidal structure design minimizes liquor volume to 40L while maximizing dyeing efficiency and durability.
Winding cycles are automatically recorded and can be preset. Bidirectional rotation switches automatically based on cycle count for hands-off operation.
Complete technical parameters for AT276B
| AT276B Technical Parameters | |
|---|---|
| Model | AT276B |
| Operation Mode | Touch screen operation |
| Heating Method | Electric heating |
| Diameter of Winding Rolls | Φ160–180 mm |
| Max. Effective Width | 800 mm |
| Diameter of Fabric-Guiding Rolls | Φ125 mm |
| Solution Volume | 40 L |
| Fabric Speed | 0–10 m/min, adjustable |
| Temperature Range | RT ~ 98°C (±2°C) |
| Temperature Accuracy | ±2°C |
| Machine Power | Approx. 6 kW |
| Power Supply | AC380V 50Hz, three-phase |
| Dimensions (L×W×H) | 1500 × 950 × 1480 mm |
| Weight | Approx. 800 kg |
The smart investment for dyeing laboratories
Cut down wasted time and investment caused by bad dyeing technology. Validate every formula at lab scale before committing to production runs.
Quickly iterate dyeing recipes with precise parameter control. Automatic cycle recording and bidirectional rotation let you focus on results, not mechanics.
Imported SUS304 stainless steel construction resists corrosion from dyes and chemicals. Built for years of continuous laboratory use.
Trapezoidal tank design reduces liquor volume to just 40L — saving on dyes, chemicals, and water while maintaining professional-grade results.
Get a quote for the AT276B Laboratory Jig Dyeing Machine today. Our technical team is ready to help you configure the perfect solution for your dyeing applications.
